NMK1505SAC
ActiveMurata Power Solutions Inc.

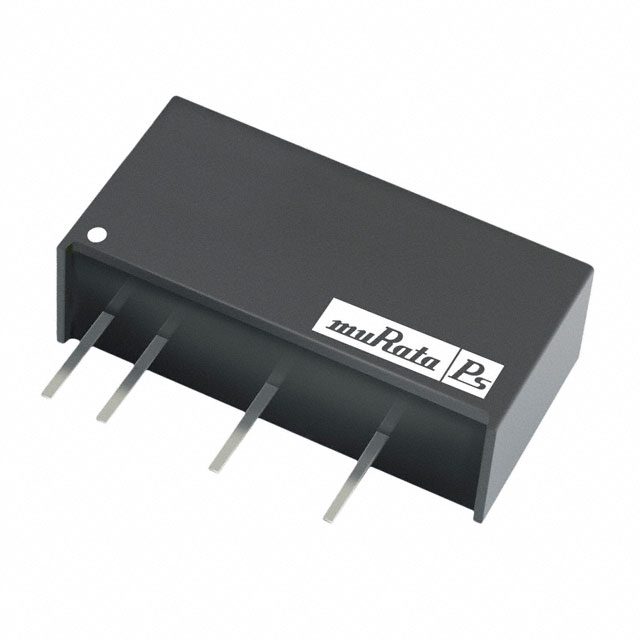

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
NMK1505SAC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NMK1505SAC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 84 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.7 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
NMK15 Series
| Part | Voltage - Isolation | Mounting Type | Current - Output (Max) [Min] | Current - Output (Max) [Max] | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Output 2 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Power (Watts) | Voltage - Output 1 | Efficiency | Applications | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 3000 V | Through Hole | 111 mA | 111 mA | 7-SIP Module 5 Leads | Isolated Module | 85 °C | -40 °C | 2 | -9 V | 0.4 " | 10.2 mm | 19.7 mm | 0.3 " | 7.7 mm | 0.77 in | 16.5 V | 13.5 V | 2 W | 9 V | 86 % | ITE (Commercial) | |||
Murata Power Solutions Inc. | 3000 V | Through Hole | 7-SIP Module 5 Leads | Isolated Module | 85 °C | -40 °C | 2 | -12 V | 0.4 " | 10.2 mm | 19.7 mm | 0.3 " | 7.7 mm | 0.77 in | 16.5 V | 13.5 V | 2 W | 12 V | 88 % | ITE (Commercial) | 83 mA | 83 mA | |||
Murata Power Solutions Inc. | 3000 V | Through Hole | 400 mA | 7-SIP Module 4 Leads | Isolated Module | 85 °C | -40 °C | 1 | 0.4 " | 10.2 mm | 19.7 mm | 0.3 " | 7.7 mm | 0.77 in | 16.5 V | 13.5 V | 2 W | 5 V | 84 % | ITE (Commercial) | |||||
Murata Power Solutions Inc. | 3000 V | Through Hole | 7-SIP Module 5 Leads | Isolated Module | 85 °C | -40 °C | 2 | -15 V | 0.4 " | 10.2 mm | 19.7 mm | 0.3 " | 7.7 mm | 0.77 in | 16.5 V | 13.5 V | 2 W | 15 V | 88 % | ITE (Commercial) | 67 mA | 67 mA | |||
Murata Power Solutions Inc. | 3000 V | Through Hole | 222 mA | 7-SIP Module 4 Leads | Isolated Module | 85 °C | -40 °C | 1 | 0.4 " | 10.2 mm | 19.7 mm | 0.3 " | 7.7 mm | 0.77 in | 16.5 V | 13.5 V | 2 W | 9 V | 86 % | ITE (Commercial) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NMK15 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V
Documents
Technical documentation and resources
