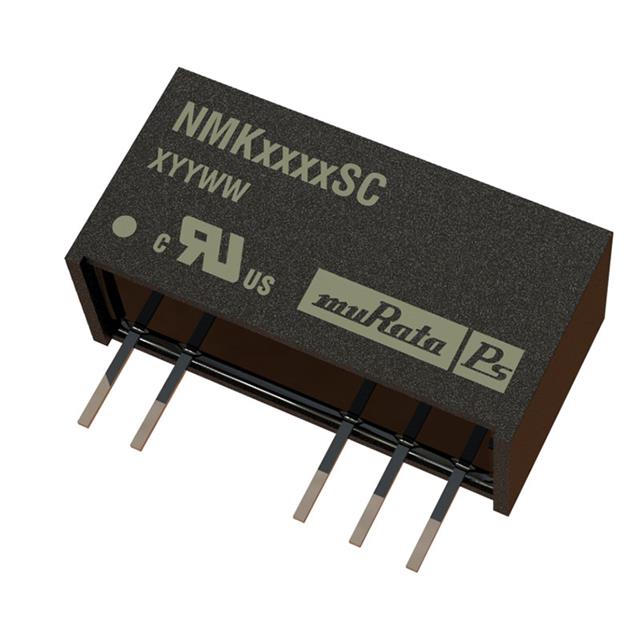

NMK1509SC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 2W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Mounting Type	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1	Efficiency	Applications	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NMK1509SC	3000 V	Through Hole	111 mA	111 mA	7-SIP Module 5 Leads	Isolated Module	85 °C	-40 °C	2	-9 V	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	16.5 V	13.5 V	2 W	9 V	86 %	ITE (Commercial)
Murata Power Solutions Inc. NMK1512SC	3000 V	Through Hole			7-SIP Module 5 Leads	Isolated Module	85 °C	-40 °C	2	-12 V	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	16.5 V	13.5 V	2 W	12 V	88 %	ITE (Commercial)	83 mA	83 mA
Murata Power Solutions Inc. NMK1505SAC	3000 V	Through Hole		400 mA	7-SIP Module 4 Leads	Isolated Module	85 °C	-40 °C	1		0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	16.5 V	13.5 V	2 W	5 V	84 %	ITE (Commercial)
Murata Power Solutions Inc. NMK1515SC	3000 V	Through Hole			7-SIP Module 5 Leads	Isolated Module	85 °C	-40 °C	2	-15 V	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	16.5 V	13.5 V	2 W	15 V	88 %	ITE (Commercial)		67 mA	67 mA
Murata Power Solutions Inc. NMK1509SAC	3000 V	Through Hole		222 mA	7-SIP Module 4 Leads	Isolated Module	85 °C	-40 °C	1		0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	16.5 V	13.5 V	2 W	9 V	86 %	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 13.5V - 16.5V Input
