BMG160-SHUTL

Obsolete

Bosch Sensortec

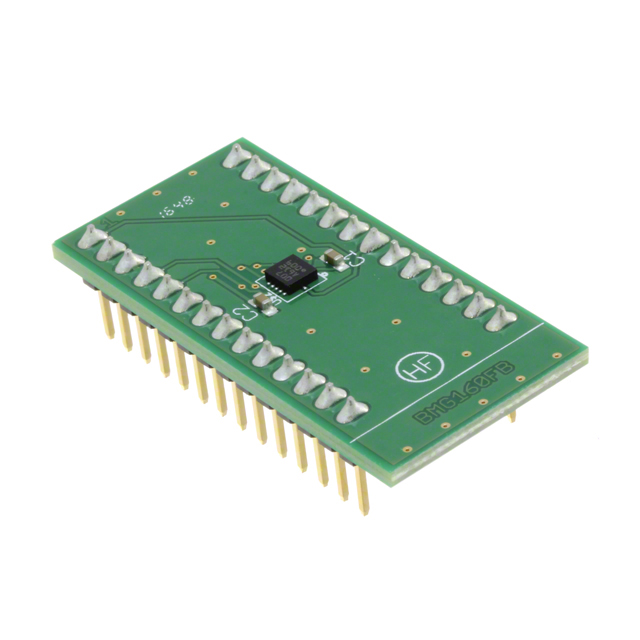

SHUTTLE BOARD BMG160

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMG160

Technical Specifications

Parameters and characteristics for this part

Part	Type	Utilized IC / Part	Contents	Function	Output Type	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Axis [x]	Axis [z]	Axis [y]	Operating Temperature [Max]	Operating Temperature [Min]	Range °/s	Bandwidth [Min]	Bandwidth [Max]	Sensitivity (LSB/(°/s)) [Min]	Sensitivity (LSB/(°/s)) [Max]	Features
Bosch Sensortec BMG160-SHUTL	Sensor	BMG160	Board(s)	Gyroscope
Bosch Sensortec BMG160	Digital				I2C SPI	5 mA	2.4 V	3.6 V	12-VFLGA	Pitch	Yaw	Roll	85 °C	-40 °C	125 °/s 250 500 1000 2000	12 Hz	230 Hz	16.4 LSB/(°/s)	262.4 LSB/(°/s)	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMG160 Gyroscope Sensor Platform Evaluation Expansion Board
