BMG160

Obsolete

Bosch Sensortec

GYROSCOPE 3-AXIS SPI/I2C SMD

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

GYROSCOPE 3-AXIS SPI/I2C SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BMG160

Axis [x]	Pitch
Axis [y]	Roll
Axis [z]	Yaw
Bandwidth [Max]	230 Hz
Bandwidth [Min]	12 Hz
Current - Supply	5 mA
Features	Sleep Mode, Temperature Sensor, Adjustable Bandwidth, Selectable Scale
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C, SPI

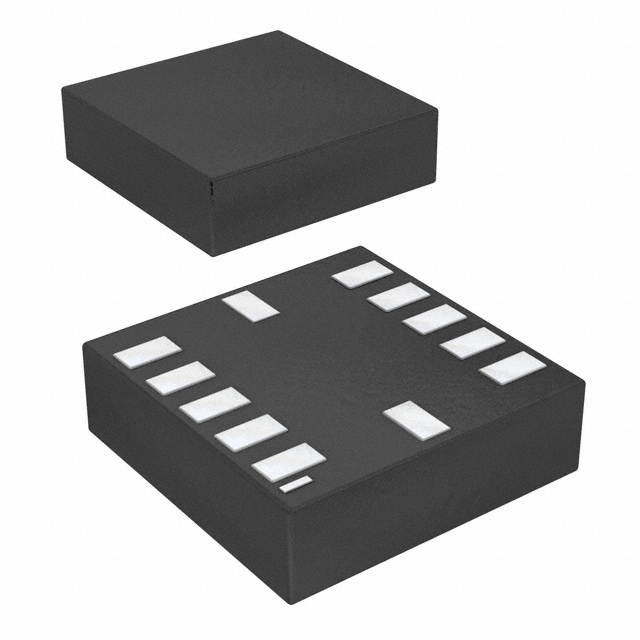

Package / Case	12-VFLGA
Range °/s	2000, 500, 125 °/s, 1000, 250
Sensitivity (LSB/(°/s)) [Max]	262.4 LSB/(°/s)
Sensitivity (LSB/(°/s)) [Min]	16.4 LSB/(°/s)
Type	Digital
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.4 V

Part	Type	Utilized IC / Part	Contents	Function	Output Type	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Axis [x]	Axis [z]	Axis [y]	Operating Temperature [Max]	Operating Temperature [Min]	Range °/s	Bandwidth [Min]	Bandwidth [Max]	Sensitivity (LSB/(°/s)) [Min]	Sensitivity (LSB/(°/s)) [Max]	Features
Bosch Sensortec BMG160-SHUTL	Sensor	BMG160	Board(s)	Gyroscope
Bosch Sensortec BMG160	Digital				I2C SPI	5 mA	2.4 V	3.6 V	12-VFLGA	Pitch	Yaw	Roll	85 °C	-40 °C	125 °/s 250 500 1000 2000	12 Hz	230 Hz	16.4 LSB/(°/s)	262.4 LSB/(°/s)	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Gyroscope X (Pitch), Y (Roll), Z (Yaw) ±125, 250, 500, 1000, 2000 12Hz ~ 230Hz I2C, SPI 12-LGA (3x3)
