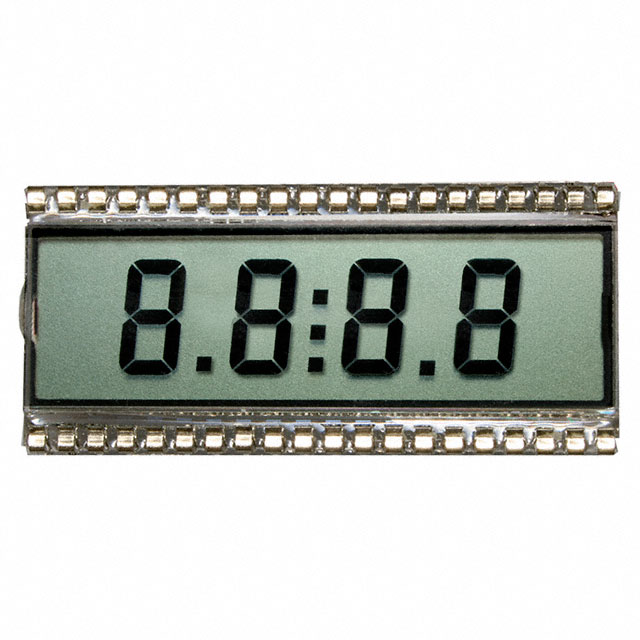

LCD-S401C52TR
ActiveLumex Opto/Components Inc.
LCD MOD 4 DIG 4 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
LCD-S401C52TR
ActiveLumex Opto/Components Inc.
LCD MOD 4 DIG 4 X 1 REFLECTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-S401C52TR |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [y] | 7.62 mm |
| Character Size [z] | 13.2 mm |
| Display Format [x] | 4 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 4 |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 30.48 mm |
| Outline L x W x H [z] | 2.8 mm |
| Viewing Area [x] | 45.72 mm |
| Viewing Area [y] | 17.78 mm |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
LCD-S401 Series
| Part | Viewing Area [y] | Viewing Area [x] | Backlight | Character Format | Display Mode | Background Color | Outline L x W x H [x] | Outline L x W x H [y] | Outline L x W x H [z] | Display Format [y] | Display Format [x] | Display Type | Number of Characters | Character Size [z] | Character Size [y] | Voltage - Supply | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | 17.78 mm | 45.72 mm | Without Backlight | 7-Segment | Reflective | Gray | 50.8 mm | 30.48 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | |||||
Lumex Opto/Components Inc. | 5.28 mm | 17.92 mm | Without Backlight | 7-Segment | Transflective | Gray | 20.32 mm | 10.16 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | 4.42 mm | 2.31 mm | 3 V | ||
Lumex Opto/Components Inc. | 5.28 mm | 17.92 mm | Without Backlight | 7-Segment | Transflective | Gray | 20.32 mm | 10.16 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | 4.42 mm | 2.31 mm | |||
Lumex Opto/Components Inc. | 12.7 mm | 43.18 mm | Without Backlight | 7-Segment | Reflective | Gray | 1 | 4 | TN - Twisted Nematic | 4 | 9.92 mm | 6.35 mm | ||||||
Lumex Opto/Components Inc. | 22.86 mm | 62.23 mm | Without Backlight | 7-Segment | Transflective | Gray | 69.85 mm | 38.1 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | 18 mm | 9 mm | |||
Lumex Opto/Components Inc. | 17.78 mm | 45.72 mm | Without Backlight | 7-Segment | Reflective | Gray | 50.8 mm | 30.48 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | 13.2 mm | 7.62 mm | 5 V | 3 V | |
Lumex Opto/Components Inc. | 5.28 mm | 17.92 mm | Without Backlight | 7-Segment | Reflective | Gray | 20.32 mm | 10.16 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | 4.42 mm | 2.31 mm | 3 V | ||
Lumex Opto/Components Inc. | ||||||||||||||||||
Lumex Opto/Components Inc. | 22.86 mm | 62.23 mm | Without Backlight | 7-Segment | Reflective | Gray | 69.85 mm | 38.1 mm | 2.8 mm | 1 | 4 | TN - Twisted Nematic | 4 | 18 mm | 9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.29 | |
| 10 | $ 2.32 | |||
| 210 | $ 1.95 | |||
Description
General part information
LCD-S401 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 30.48mm x 2.80mm
