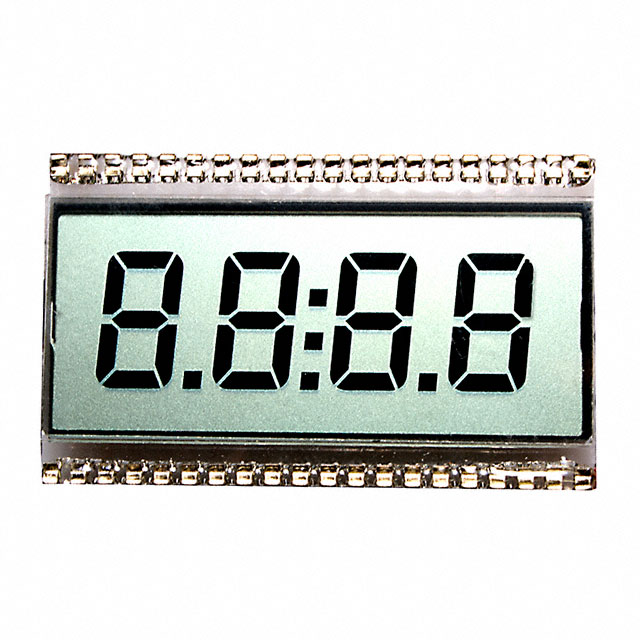

LCD-S401C39TR

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 4 X 1 REFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

LCD-S401C39TR

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 4 X 1 REFLECTIVE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCD-S401C39TR

Background Color	Gray
Backlight	Without Backlight
Character Format	7-Segment
Character Size [y]	6.35 mm
Character Size [z]	9.92 mm
Display Format [x]	4
Display Format [y]	1
Display Mode	Reflective
Display Type	TN - Twisted Nematic
Number of Characters	4
Viewing Area [x]	43.18 mm
Viewing Area [y]	12.7 mm

LCD-S401 Series

Part	Viewing Area [y]	Viewing Area [x]	Backlight	Character Format	Display Mode	Background Color	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Display Format [y]	Display Format [x]	Display Type	Number of Characters	Character Size [z]	Character Size [y]	Voltage - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]
Lumex Opto/Components Inc. LCD-S401C52TR-49	17.78 mm	45.72 mm	Without Backlight	7-Segment	Reflective	Gray	50.8 mm	30.48 mm	2.8 mm	1	4	TN - Twisted Nematic	4
Lumex Opto/Components Inc. LCD-S401M16KF/W3	5.28 mm	17.92 mm	Without Backlight	7-Segment	Transflective	Gray	20.32 mm	10.16 mm	2.8 mm	1	4	TN - Twisted Nematic	4	4.42 mm	2.31 mm	3 V
Lumex Opto/Components Inc. LCD-S401M16TF	5.28 mm	17.92 mm	Without Backlight	7-Segment	Transflective	Gray	20.32 mm	10.16 mm	2.8 mm	1	4	TN - Twisted Nematic	4	4.42 mm	2.31 mm
Lumex Opto/Components Inc. LCD-S401C39TR	12.7 mm	43.18 mm	Without Backlight	7-Segment	Reflective	Gray				1	4	TN - Twisted Nematic	4	9.92 mm	6.35 mm
Lumex Opto/Components Inc. LCD-S401C71TF-1	22.86 mm	62.23 mm	Without Backlight	7-Segment	Transflective	Gray	69.85 mm	38.1 mm	2.8 mm	1	4	TN - Twisted Nematic	4	18 mm	9 mm
Lumex Opto/Components Inc. LCD-S401C52TR	17.78 mm	45.72 mm	Without Backlight	7-Segment	Reflective	Gray	50.8 mm	30.48 mm	2.8 mm	1	4	TN - Twisted Nematic	4	13.2 mm	7.62 mm		5 V	3 V
Lumex Opto/Components Inc. LCD-S401M16KR	5.28 mm	17.92 mm	Without Backlight	7-Segment	Reflective	Gray	20.32 mm	10.16 mm	2.8 mm	1	4	TN - Twisted Nematic	4	4.42 mm	2.31 mm	3 V
Lumex Opto/Components Inc. LCD-S401C52TF
Lumex Opto/Components Inc. LCD-S401C71TR	22.86 mm	62.23 mm	Without Backlight	7-Segment	Reflective	Gray	69.85 mm	38.1 mm	2.8 mm	1	4	TN - Twisted Nematic	4	18 mm	9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.19
		10	$ 2.96
		100	$ 2.43
		500	$ 2.05
		1000	$ 1.88
		2000	$ 1.80
		5000	$ 1.76

Description

General part information

LCD-S401 Series

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 22.73mm x 2.20mm

Documents

Technical documentation and resources

No documents available
