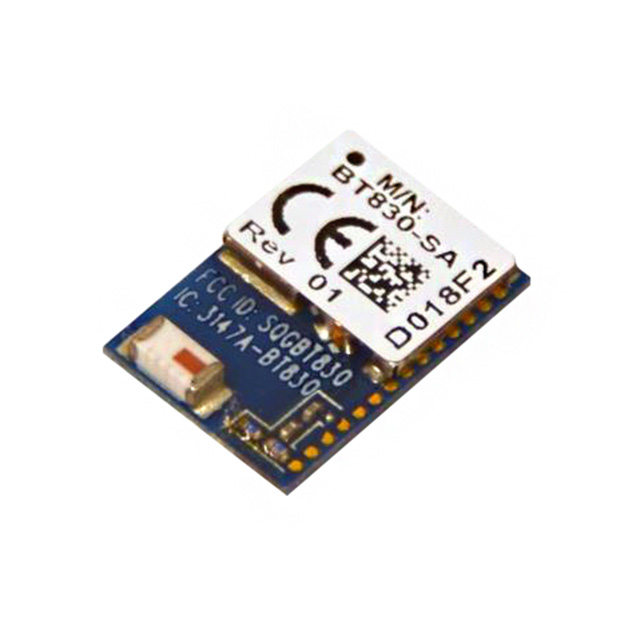

BT830-SA-01

Ezurio LLC

BLUETOOTH V4.0 (BLE) + EDR SMART SOC CLASS I 3MBPS 3.3V 30-PIN SMD MODULE EACH

Search across all available documentation for this part.

Ezurio LLC

BLUETOOTH V4.0 (BLE) + EDR SMART SOC CLASS I 3MBPS 3.3V 30-PIN SMD MODULE EACH

Technical Specifications

Parameters and characteristics for this part

Part	Sensitivity	Data Rate	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Current - Transmitting	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Frequency	Utilized IC / Part	Current - Receiving	Power - Output	Antenna Type	Mounting Type
Ezurio LLC BT830-SA-01	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2S SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Integrated Chip	Surface Mount
Ezurio LLC BT830-ST-01-T/R	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2S SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Antenna Not Included Castellation	Surface Mount
Ezurio LLC BT830-SA-01-T/R	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2C SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Integrated Chip	Surface Mount
Ezurio LLC BT830-ST	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2S SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Antenna Not Included Castellation	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount

Technical documentation and resources

No documents available
