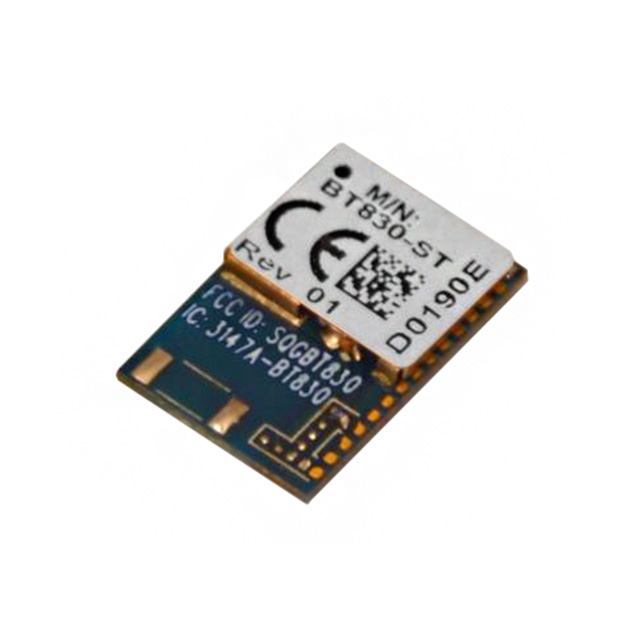

BT830-ST

Active

Ezurio LLC

RF TXRX MOD BT CAST SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BT CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BT830-ST

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	7.1 mA
Current - Transmitting	7.1 mA
Data Rate	3 Mbps
Frequency	2.4 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Power - Output	7 dBm
Protocol	Bluetooth v4.0
RF Family/Standard	Bluetooth
Sensitivity	-89 dBm
Serial Interfaces	UART, I2S, SPI
Utilized IC / Part	CSR8811
Voltage - Supply	3.3 V

Part	Sensitivity	Data Rate	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Current - Transmitting	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Frequency	Utilized IC / Part	Current - Receiving	Power - Output	Antenna Type	Mounting Type
Ezurio LLC BT830-SA-01	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2S SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Integrated Chip	Surface Mount
Ezurio LLC BT830-ST-01-T/R	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2S SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Antenna Not Included Castellation	Surface Mount
Ezurio LLC BT830-SA-01-T/R	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2C SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Integrated Chip	Surface Mount
Ezurio LLC BT830-ST	-89 dBm	3 Mbps	3.3 V	-30 ░C	85 °C	7.1 mA	I2S SPI UART	Bluetooth v4.0	Bluetooth	Module	2.4 GHz	CSR8811	7.1 mA	7 dBm	Antenna Not Included Castellation	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount
