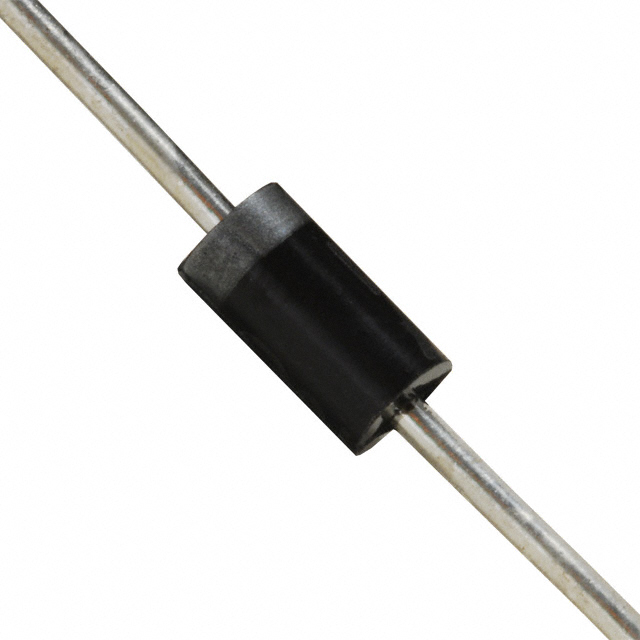

UF4002 TR

Obsolete

Central Semiconductor Corp

DIODE GEN PURP 100V 1A DO41

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

DIODE GEN PURP 100V 1A DO41

Technical Specifications

Parameters and characteristics for this part

Specification	UF4002 TR

Capacitance @ Vr, F	20 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-204AL, DO-41, Axial
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Capacitance @ Vr, F	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package
Central Semiconductor Corp UF4002 TR TIN/LEAD	1 V	150 °C	-65 C	Standard	Axial DO-204AL DO-41	10 µA	Through Hole	1 A	50 ns	20 pF	200 mA 500 ns	100 V	DO-41
Central Semiconductor Corp UF4002 TR	1 V	150 °C	-65 C	Standard	Axial DO-204AL DO-41	10 µA	Through Hole	1 A	50 ns	20 pF	200 mA 500 ns	100 V	DO-41

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 1A Through Hole DO-41
