0190750013
ActiveMolex

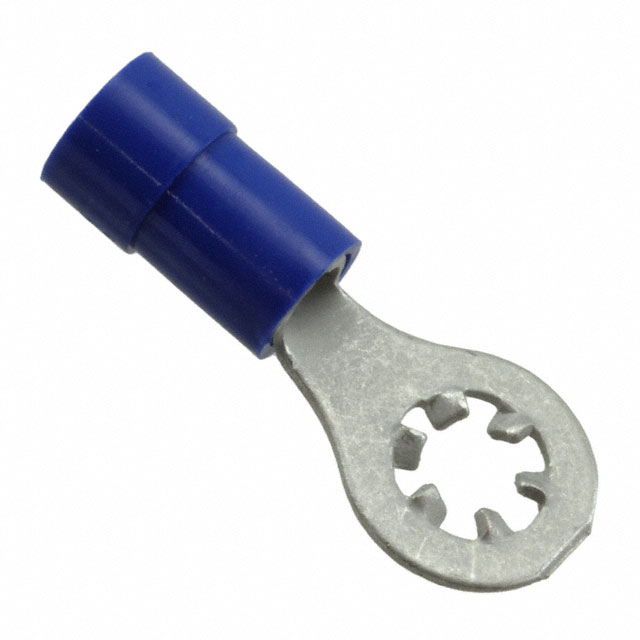

CONN RING CIRC 14-16AWG #6 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0190750013
ActiveMolex
CONN RING CIRC 14-16AWG #6 CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190750013 |
|---|---|
| Color | Blue |
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Features | Inner Teeth |
| Insulation | Insulated |
| Insulation Diameter [diameter] | 0.175 in |
| Insulation Diameter [diameter] | 4.45 mm |
| Length - Overall | 0.9 in |
| Length - Overall | 22.86 mm |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 50 mils |
| Thickness | 0.05 in |
| Width - Outer Edges [x] | 0.375 in |
| Width - Outer Edges [x] | 9.53 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| 3000 | $ 0.16 | |||
Description
General part information
019075 Series
Ring Terminal Connector 6 Stud Circular 14-16 AWG Crimp
