0190750005

Active

Molex

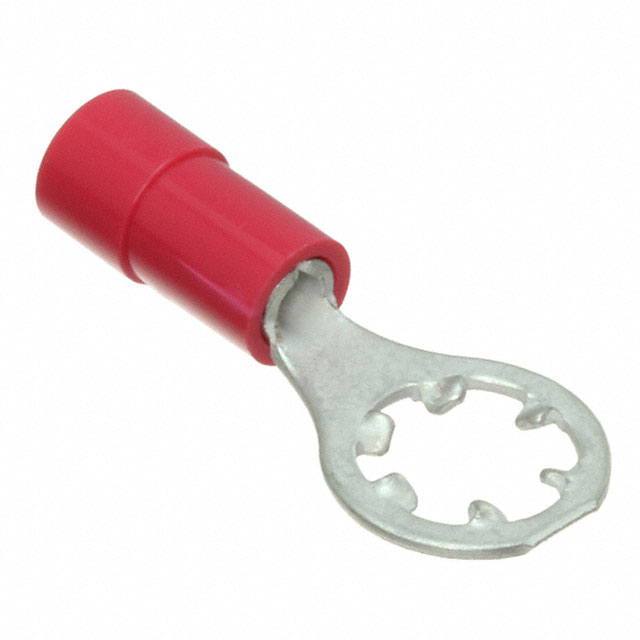

CONN RING CIRC 18-22AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0190750005

Active

Molex

CONN RING CIRC 18-22AWG #10

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190750005

Color	Red
Contact Finish	Electro-Tin
Contact Material	Brass
Features	Inner Teeth
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall	0.9 in
Length - Overall	22.86 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges [x]	0.375 in
Width - Outer Edges [x]	9.53 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019075 Series

Part	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Contact Finish	Material - Insulation	Termination	Terminal Type	Insulation	Color	Mounting Type	Thickness	Thickness	Length - Overall	Length - Overall	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Features	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Stud/Tab Size
Molex 0190750015	8 Stud	0.375 in	9.53 mm	Brass	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Blue	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.175 in	4.45 mm	Inner Teeth
Molex 0190750012		0.375 in	9.53 mm	Steel	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Red	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.145 "		Inner Teeth	22 AWG	17.5 AWG	3.68 mm	10 Stud
Molex 0190750016	8 Stud	0.375 in	9.53 mm	Brass	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Blue	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.175 in	4.45 mm	Inner Teeth
Molex 0190750007		0.375 in	9.53 mm	Steel	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Red	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.145 "		Inner Teeth	22 AWG	17.5 AWG	3.68 mm	6 Stud
Molex 0190750022	8 Stud	0.375 in	9.53 mm	Steel	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Blue	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.175 in	4.45 mm	Inner Teeth
Molex 0190750004	8 Stud	0.375 in	9.53 mm	Brass	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Red	Free Hanging (In-Line)	0.58 mm	0.023 in	0.9 in	22.86 mm	0.145 "		Inner Teeth	22 AWG	17.5 AWG	3.68 mm
Molex 0190750023		0.375 in	9.53 mm	Steel	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Blue	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.175 in	4.45 mm	Inner Teeth				10 Stud
Molex 0190750005		0.375 in	9.53 mm	Brass	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Red	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.145 "		Inner Teeth	22 AWG	17.5 AWG	3.68 mm	10 Stud
Molex 0190750024		0.375 in	9.53 mm	Steel	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Blue	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.175 in	4.45 mm	Inner Teeth				10 Stud
Molex 0190750013		0.375 in	9.53 mm	Brass	Electro-Tin	Poly-Vinyl Chloride (PVC)	Crimp	Circular	Insulated	Blue	Free Hanging (In-Line)	50 mils	0.05 in	0.9 in	22.86 mm	0.175 in	4.45 mm	Inner Teeth				6 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.14

Description

General part information

019075 Series

Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
