Technical Specifications
Parameters and characteristics for this part
| Specification | 0350220014 |
|---|---|
| Color | Natural |
| Connector Type | Board-In |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Through Hole, Right Angle |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
035022 Series

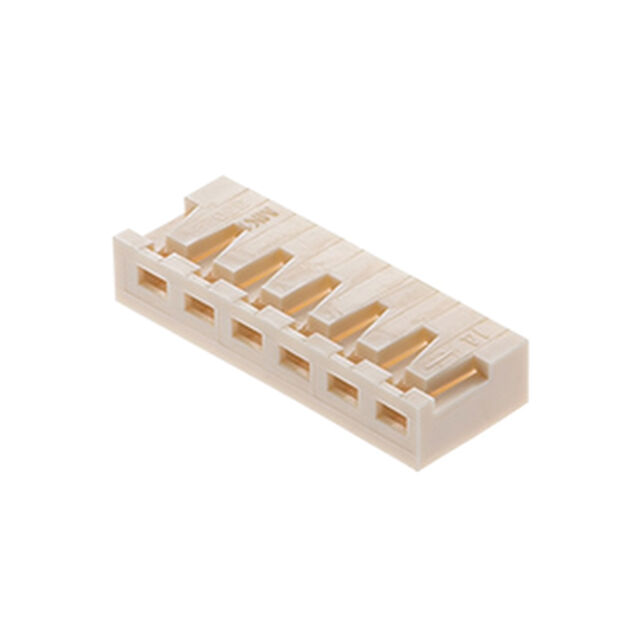

14 Rectangular Connectors - Housings Board-In Natural 0.098" (2.50mm)
