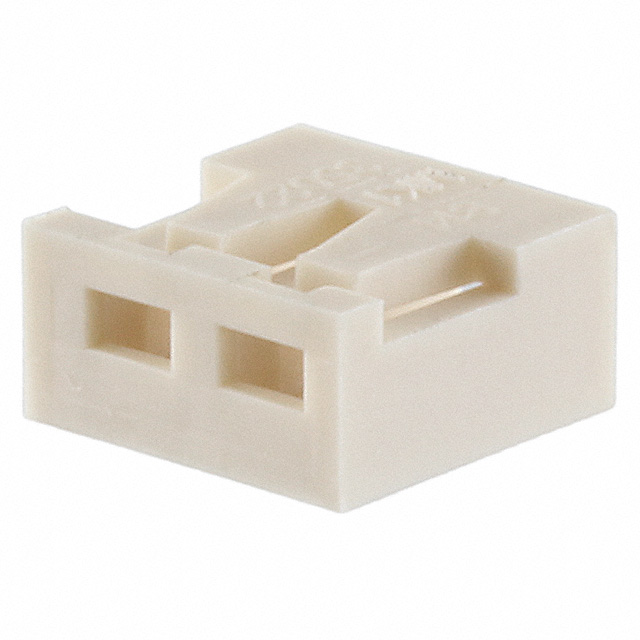

0350220002

Active

Molex

CONN BOARD-IN HSG 2POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0350220002

Active

Molex

CONN BOARD-IN HSG 2POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0350220002

Color	Natural
Connector Type	Board-In
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Through Hole, Right Angle
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

035022 Series

Part	Pitch [x]	Pitch [x]	Color	Contact Termination	Contact Type	Mounting Type	Note	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Insulation Material
Molex 0350220015	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	15	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220009	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	9	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220010	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	10	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220004	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	4	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220002	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	2	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220014	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	14	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220007	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	7	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220011	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	11	Board-In	Polyamide (PA66) Nylon 6/6
Molex 0350220012	0.098 in	2.5 mm	Natural	Crimp	Male Pin	Through Hole Right Angle	Contacts Not Included	1	-40 °C	105 ░C	12	Board-In	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.05
		25	$ 0.04
		50	$ 0.04
		100	$ 0.04
		250	$ 0.03
		500	$ 0.03
		1000	$ 0.03
		2500	$ 0.02

Description

General part information

035022 Series

2 Rectangular Connectors - Housings Board-In Natural 0.098" (2.50mm)
