DF12(3.0)-80DS-0.5V(80)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

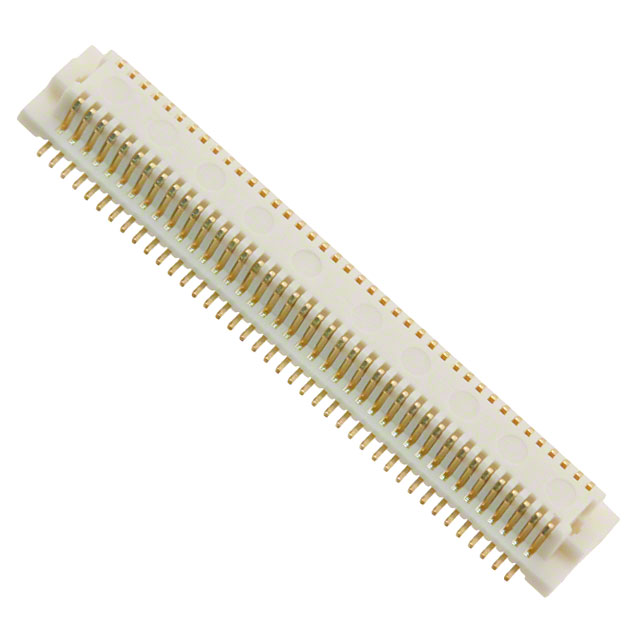

DF12(3.0)-80DS-0.5V(80)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 80POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12(3.0)-80DS-0.5V(80)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF12 (3.0) Series

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF12(3.0)-32DP-0.5V(86)	3 mm	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Board Guide Solder Retention	0.091 in	2.3 mm	Gold	2	Surface Mount
Hirose Electric USA, Inc. DF12(3.0)-80DP-0.5V(87)
Hirose Electric USA, Inc. DF12(3.0)-40DS-0.5V(86)	3 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle	8 çin	0.203 çm	Board Guide Solder Retention			Gold	2	Surface Mount	40	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12(3.0)-80DS-0.5V(86)	3 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle	8 çin	0.203 çm	Board Guide Solder Retention			Gold	2	Surface Mount	80	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12(3.0)-10DP-0.5V(86)	3 mm	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Board Guide Solder Retention	0.091 in	2.3 mm	Gold	2	Surface Mount	10
Hirose Electric USA, Inc. DF12(3.0)-20DS-0.5V(81)	3 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle	8 çin	0.203 çm	Board Guide Solder Retention			Gold	2	Surface Mount	20	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12(3.0)-30DP-0.5V(92)	3 mm	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Board Guide Solder Retention	0.091 in	2.3 mm	Gold	2	Surface Mount	30
Hirose Electric USA, Inc. DF12(3.0)-80DS-0.5V(87)
Hirose Electric USA, Inc. DF12(3.0)-80DS-0.5V(80)	3 mm	0.5 mm	0.02 in	Center Strip Contacts Receptacle			Board Guide Solder Retention			Gold	2	Surface Mount	80	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12(3.0)-60DP-0.5V(86)	3 mm	0.5 mm	0.02 in	Header Outer Shroud Contacts	8 çin	0.203 çm	Board Guide Solder Retention	0.091 in	2.3 mm	Gold	2	Surface Mount	60
