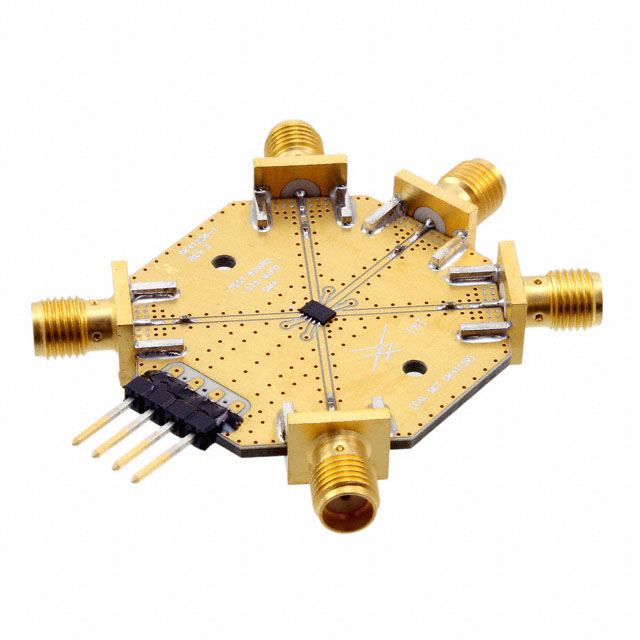

SKY13322-375LF-EVB

Active

Skyworks Solutions Inc.

BOARD EVAL SP4T SW SKY13322-375

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

BOARD EVAL SP4T SW SKY13322-375

Technical Specifications

Parameters and characteristics for this part

Specification	SKY13322-375LF-EVB

For Use With/Related Products	SKY13322-375LF
Frequency [Max]	6 GHz
Frequency [Min]	100 MHz
Supplied Contents	Board(s)
Type	Switch

Part	Insertion Loss	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Isolation	Supplier Device Package	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Topology	Impedance	RF Type	IIP3	Operating Temperature [Max]	Operating Temperature [Min]	Test Frequency	P1dB	Type	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Supplied Contents
Skyworks Solutions Inc. SKY13322-375LF	2 dB	20 MHz	6 GHz	Surface Mount	18 dB	10-MLPD (3x2)	10-XFDFN Exposed Pad	1.8 V	5 V	Reflective	50 Ohms	General Purpose	51 dBm	85 °C	-40 °C	6 GHz	30 dBm
Skyworks Solutions Inc. SKY13322-375LF-EVB																		Switch	SKY13322-375LF	6 GHz	100 MHz	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

- SKY13322-375LF Switch 100MHz ~ 6GHz Evaluation Board
