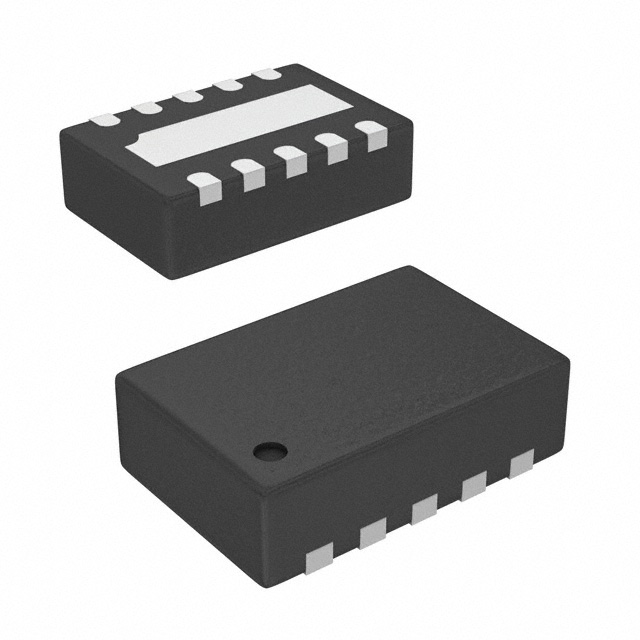

SKY13322-375LF
ActiveSkyworks Solutions Inc.
DIVERSITY SWITCH, 20MHZ MIN, 6000MHZ MAX, 1.25DB INSERTION LOSS-MAX, 3 X 2 MM, GREEN, PLASTIC, MLPD, 10 PIN
Deep-Dive with AI
Search across all available documentation for this part.
SKY13322-375LF
ActiveSkyworks Solutions Inc.
DIVERSITY SWITCH, 20MHZ MIN, 6000MHZ MAX, 1.25DB INSERTION LOSS-MAX, 3 X 2 MM, GREEN, PLASTIC, MLPD, 10 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13322-375LF |
|---|---|
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 20 MHz |
| IIP3 | 51 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 2 dB |
| Isolation | 18 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 30 dBm |
| Package / Case | 10-XFDFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 10-MLPD (3x2) |
| Test Frequency | 6 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.90 | |
| 10 | $ 1.71 | |||
| 25 | $ 1.61 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 0.93 | |||
| Digi-Reel® | 1 | $ 1.90 | ||
| 10 | $ 1.71 | |||
| 25 | $ 1.61 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 0.93 | |||
| Tape & Reel (TR) | 3000 | $ 0.87 | ||
| 6000 | $ 0.84 | |||
Description
General part information
SKY13322 Series
RF Switch IC General Purpose SP4T 6 GHz 50Ohm 10-MLPD (3x2)
