19432240330

Obsolete

HARTING Technology Group

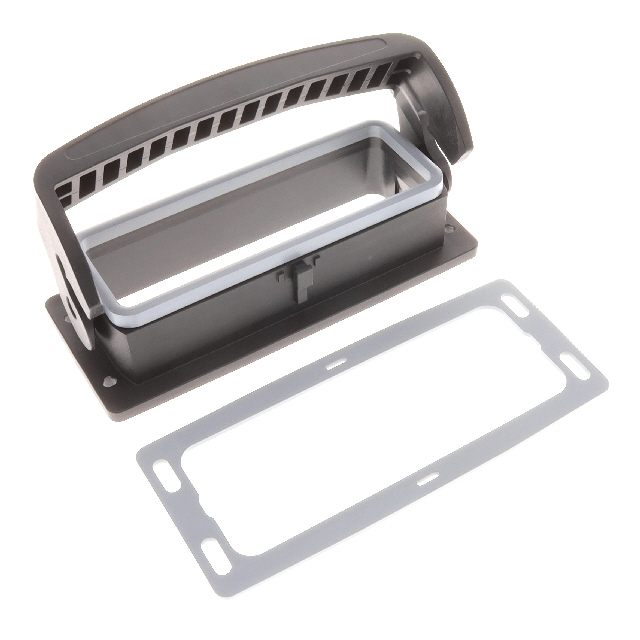

HAN-ECO 24B REAR FIT HOUSING, SI

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

HAN-ECO 24B REAR FIT HOUSING, SI

Technical Specifications

Parameters and characteristics for this part

Specification	19432240330

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.551 in
Size / Dimension [x]	141 mm
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Size / Dimension [z]	1.421 "
Size / Dimension [z]	36.1 mm
Style	Bottom Entry

Part	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Ingress Protection	Housing Color	Lock Location	Connector Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material
HARTING Technology Group 19432240341	24 B	5.551 in	2.362 in	1.421 "	36.1 mm	141 mm	60 mm	Cover	IP66	Black	Locking Clip (1) on Base Bottom	Base - Panel Mount	Bottom Entry	125 °C	-40 °C	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19432240330	24 B	5.551 in	2.362 in	1.421 "	36.1 mm	141 mm	60 mm		IP66	Black	Locking Clip (1) on Base Bottom	Base - Panel Mount	Bottom Entry	125 °C	-40 °C	Polyamide (PA) Nylon Glass Filled
HARTING Technology Group 19432240340	24 B	5.551 in	2.362 in	1.421 "	36.1 mm	141 mm	60 mm		IP66	Black	Locking Clip (1) on Base Bottom	Base - Panel Mount	Bottom Entry	125 °C	-40 °C	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.23

General part information

Base - Panel Mount Connector Bottom Entry 24B IP66 - Dust Tight, Water Resistant
