19432240340

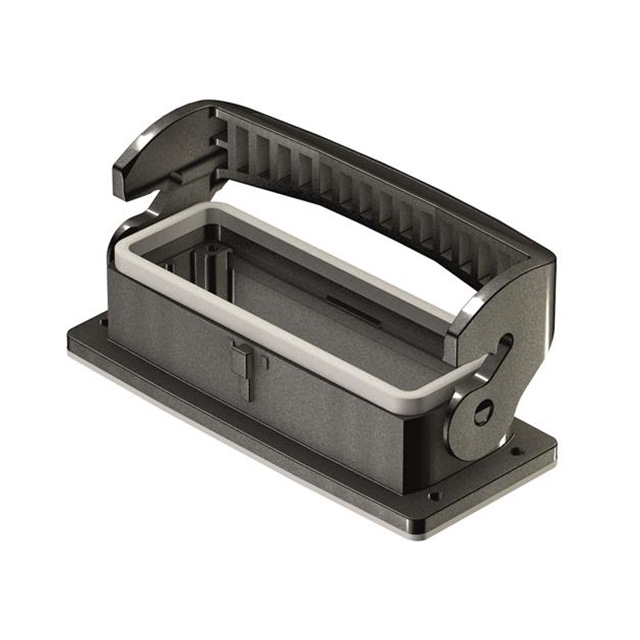

ActiveHEAVY DUTY CONNECTOR, IP66, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 24B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19432240340 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 24 B |
| Size / Dimension [x] | 5.551 in |
| Size / Dimension [x] | 141 mm |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [z] | 1.421 " |
| Size / Dimension [z] | 36.1 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19432240 Series
Han-Eco® B is a new series of high-performance plastic hoods and housings, which are suitable for both indoor and outdoor applications. The range complies with standards IEC 61948 and EN 45545-2, offers IP66 protection and substantial weight savings compared to traditional metal housings. With Han-Eco® B, you also have the ability to rear mount inserts. Instead of installing cables through the bulkhead mounted housing, pre-assembled inserts can be directly snapped into the housing from the rear. Both monobloc and modular inserts can be used with the Han-Eco® B, giving you an unparalleled choice of data, signal and power options.
