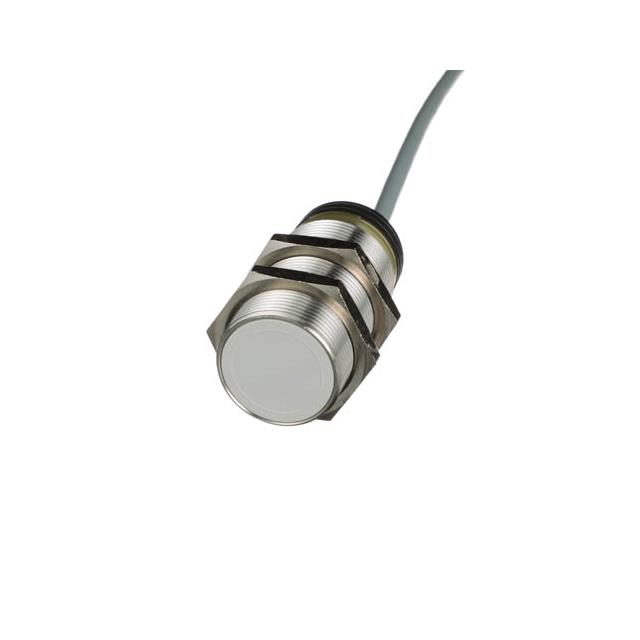

EI3010TBOSL

Active

CARLO GAVAZZI

SENSOR: INDUCTIVE; RANGE: 10MM; 24÷240VAC; OUT: SCR NO; M30; 500MA

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR: INDUCTIVE; RANGE: 10MM; 24÷240VAC; OUT: SCR NO; M30; 500MA

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Material - Body	Response Frequency	Output Type	Package / Case	Sensing Distance	Sensing Distance	Shielding	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style
CARLO GAVAZZI EI3010NPOSS	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Stainless Steel	300 Hz	NPN-NO 3-Wire	Cylinder Threaded - M30	0.394 in	10 mm	Unshielded	LED	70 °C	-25 °C	Inductive	40 VDC	10 VDC	Cable Leads
CARLO GAVAZZI EI3010TBOSL	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Stainless Steel	25 Hz	SCR-NO 2-Wire	Cylinder Threaded - M30	0.394 in	10 mm	Unshielded	LED	70 °C	-25 °C	Inductive	240 VDC	24 V	Cable Leads
CARLO GAVAZZI EI3010TBCSS	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Stainless Steel	25 Hz	SCR-NC 2-Wire	Cylinder Threaded - M30	0.394 in	10 mm	Unshielded	LED	70 °C	-25 °C	Inductive	250 VAC	20 VAC	Cable Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR: INDUCTIVE; RANGE: 10MM; 24÷240VAC; OUT: SCR NO; M30; 500MA

Technical documentation and resources
