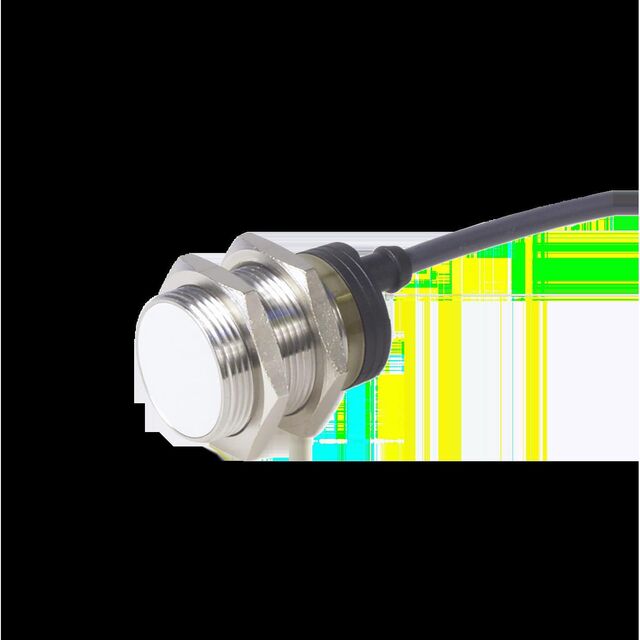

EI3010NPOSS

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 10MM CYL

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 10MM CYL

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Material - Body	Response Frequency	Output Type	Package / Case	Sensing Distance	Sensing Distance	Shielding	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style
CARLO GAVAZZI EI3010NPOSS	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Stainless Steel	300 Hz	NPN-NO 3-Wire	Cylinder Threaded - M30	0.394 in	10 mm	Unshielded	LED	70 °C	-25 °C	Inductive	40 VDC	10 VDC	Cable Leads
CARLO GAVAZZI EI3010TBOSL	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Stainless Steel	25 Hz	SCR-NO 2-Wire	Cylinder Threaded - M30	0.394 in	10 mm	Unshielded	LED	70 °C	-25 °C	Inductive	240 VDC	24 V	Cable Leads
CARLO GAVAZZI EI3010TBCSS	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	Stainless Steel	25 Hz	SCR-NC 2-Wire	Cylinder Threaded - M30	0.394 in	10 mm	Unshielded	LED	70 °C	-25 °C	Inductive	250 VAC	20 VAC	Cable Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 94.39

General part information

SENSOR PROX INDUCTIVE 10MM CYL

Technical documentation and resources
