100SP4T6B12VS5RE

Active

E-Switch

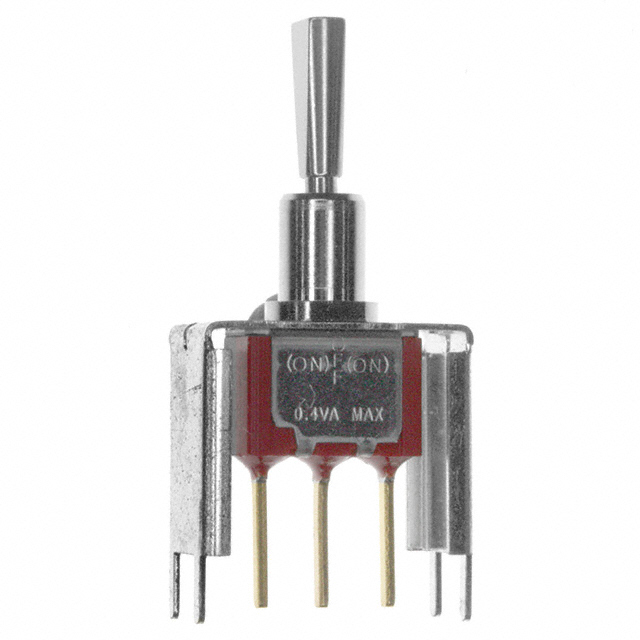

SWITCH: TOGGLE; POS: 3; SP3T; (ON)-OFF-(ON); 0.02A/20VAC; 100; THT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100SP4T6B12VS5RE

Active

E-Switch

SWITCH: TOGGLE; POS: 3; SP3T; (ON)-OFF-(ON); 0.02A/20VAC; 100; THT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100SP4T6B12VS5RE

Actuator Length [x]	12.3 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flat Anti-Rotation
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

100DP1 Series

...

Part	Features	Termination Style	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Illumination	Circuit	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Electrical Life	Mounting Type
E-Switch 1003P1T7B13M2QE	Epoxy Sealed Terminals	PC Pin	28 V	11.91 mm	15/32-32	Standard Round	120 V	13 mm	Non-Illuminated	3PDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles
E-Switch 1003P1T2B4M6QE	Epoxy Sealed Terminals	PC Pin	28 V		Unthreaded	Standard Round	120 V	5.08 mm	Non-Illuminated	3PDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles	Through Hole Right Angle
E-Switch 100DP1T1B3M2QEH	Epoxy Sealed Terminals	PC Pin	28 V	0.25 in	1/4-40	Standard Round	120 V	10.41 mm	Non-Illuminated	DPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles
E-Switch 100SP2T1B4VS2QE		PC Pin	28 V	0.25 in	1/4-40	Standard Round	120 V	12.19 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-Mom	40000 Cycles
E-Switch 100SP1T1B4M2RE	Epoxy Sealed Terminals	PC Pin	20 V		Unthreaded	Standard Round	20 V	10.41 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	0.4 VA	On-On	40000 Cycles	Through Hole
E-Switch 100SP3T2B4VS2QE	Epoxy Sealed Terminals	PC Pin	28 V		Unthreaded	Standard Round	120 V	5.08 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-Off-On	40000 Cycles	Through Hole
E-Switch 100SP1T6B11M53REH	Epoxy Sealed Terminals	Wire Wrap	20 V	0.25 in	1/4-40	Flat Anti-Rotation	20 V	12.3 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	0.4 VA	On-On	40000 Cycles
E-Switch 100SP5T2B5M1QE	Epoxy Sealed Terminals	Solder Lug	28 V	0.25 in	1/4-40	Standard Round	120 V	5.08 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-Off-Mom	40000 Cycles
E-Switch 100SP1T4B1M1QEH	Epoxy Sealed Terminals	Solder Lug	28 V	0.25 in	1/4-40	Standard Round	120 V	16.26 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles
E-Switch 100SP4T6B12VS5RE	Epoxy Sealed Terminals	PC Pin	20 V		Unthreaded	Flat Anti-Rotation	20 V	12.3 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	0.4 VA	Mom-Off-Mom	40000 Cycles	Through Hole
