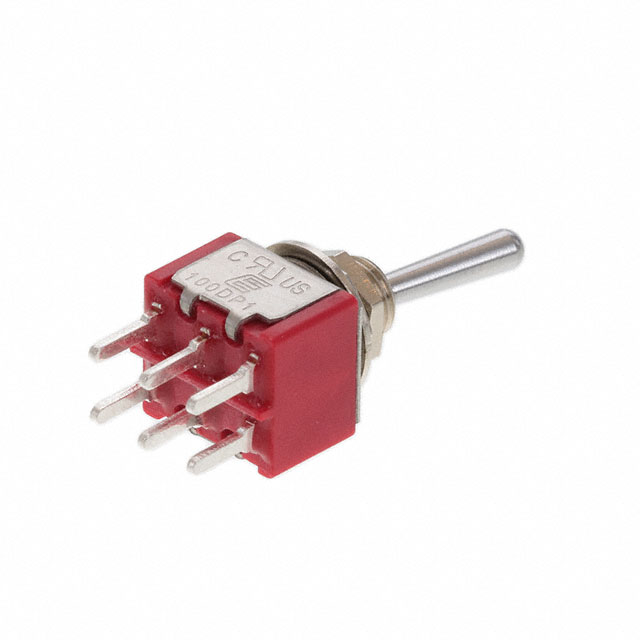

100DP1T1B3M2QEH

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP1T1B3M2QEH

Active

E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100DP1T1B3M2QEH

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

100DP1 Series

...

Part	Features	Termination Style	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Illumination	Circuit	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Electrical Life	Mounting Type
E-Switch 1003P1T7B13M2QE	Epoxy Sealed Terminals	PC Pin	28 V	11.91 mm	15/32-32	Standard Round	120 V	13 mm	Non-Illuminated	3PDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles
E-Switch 1003P1T2B4M6QE	Epoxy Sealed Terminals	PC Pin	28 V		Unthreaded	Standard Round	120 V	5.08 mm	Non-Illuminated	3PDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles	Through Hole Right Angle
E-Switch 100DP1T1B3M2QEH	Epoxy Sealed Terminals	PC Pin	28 V	0.25 in	1/4-40	Standard Round	120 V	10.41 mm	Non-Illuminated	DPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles
E-Switch 100SP2T1B4VS2QE		PC Pin	28 V	0.25 in	1/4-40	Standard Round	120 V	12.19 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-Mom	40000 Cycles
E-Switch 100SP1T1B4M2RE	Epoxy Sealed Terminals	PC Pin	20 V		Unthreaded	Standard Round	20 V	10.41 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	0.4 VA	On-On	40000 Cycles	Through Hole
E-Switch 100SP3T2B4VS2QE	Epoxy Sealed Terminals	PC Pin	28 V		Unthreaded	Standard Round	120 V	5.08 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-Off-On	40000 Cycles	Through Hole
E-Switch 100SP1T6B11M53REH	Epoxy Sealed Terminals	Wire Wrap	20 V	0.25 in	1/4-40	Flat Anti-Rotation	20 V	12.3 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	0.4 VA	On-On	40000 Cycles
E-Switch 100SP5T2B5M1QE	Epoxy Sealed Terminals	Solder Lug	28 V	0.25 in	1/4-40	Standard Round	120 V	5.08 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-Off-Mom	40000 Cycles
E-Switch 100SP1T4B1M1QEH	Epoxy Sealed Terminals	Solder Lug	28 V	0.25 in	1/4-40	Standard Round	120 V	16.26 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	5 A	On-On	40000 Cycles
E-Switch 100SP4T6B12VS5RE	Epoxy Sealed Terminals	PC Pin	20 V		Unthreaded	Flat Anti-Rotation	20 V	12.3 mm	Non-Illuminated	SPDT	Brass Chrome Plated	-30 ░C	85 °C	0.4 VA	Mom-Off-Mom	40000 Cycles	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.74
		10	$ 3.35
		25	$ 3.18
		96	$ 2.88
		288	$ 2.76
		576	$ 2.52
		1056	$ 2.40

Description

General part information

100DP1 Series

Toggle Switch DPDT Panel Mount
