17K117-K02L5
ActiveRosenberger
ADAPT LW SMP JACK - LW SMP JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17K117-K02L5
ActiveRosenberger
ADAPT LW SMP JACK - LW SMP JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17K117-K02L5 |
|---|---|
| Adapter Series | SMP to SMP |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMP Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, SMP Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 5.88 | |
| 10 | $ 5.32 | |||
| 25 | $ 5.02 | |||
| 50 | $ 4.90 | |||
| 100 | $ 4.65 | |||
| 300 | $ 4.31 | |||
Description
General part information
17K117 Series

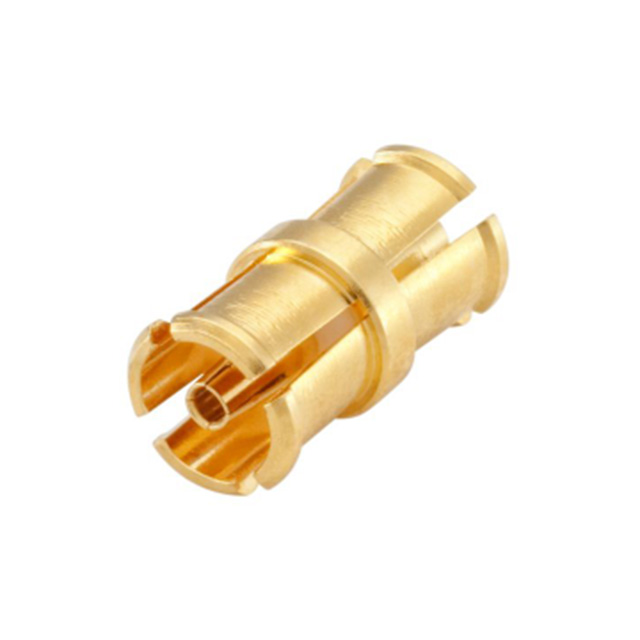

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
