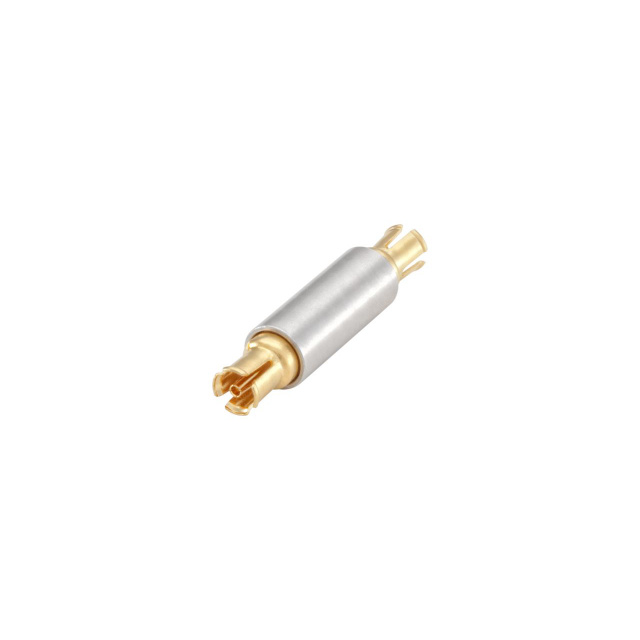

17K117-K03L5
ActiveRosenberger
LONGWIPE SMP ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17K117-K03L5
ActiveRosenberger
LONGWIPE SMP ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17K117-K03L5 |
|---|---|
| Adapter Series | SMP to SMP |
| Adapter Type | Jack to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMP Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, SMP Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.12 dB |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
17K117 Series
| Part | Impedance | Convert From (Adapter End) | Body Material | Center Contact Material | Frequency - Max [Max] | Body Finish | Mating Cycles | Dielectric Material | Adapter Series | Center Contact Plating | Convert To (Adapter End) | Center Gender | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Style | Fastening Type | Insertion Loss | Adapter Type | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | 50 Ohms | SMP Jack Female Socket | Brass | Beryllium Copper | 6000 MHz | White Bronze | 1000 | Polytetrafluoroethylene (PTFE) | SMP to SMP | Gold | Female Socket SMP Jack | Female to Female | 155 °C | -65 ░C | Free Hanging (In-Line) | Straight | Snap-On | 0.12 dB | Jack to Jack | Same Series |
Rosenberger | 50 Ohms | SMP Jack Female Socket | Beryllium Copper | Beryllium Copper | 6000 MHz | Gold | Polytetrafluoroethylene (PTFE) | SMP to SMP | Gold | Female Socket SMP Jack | Female to Female | 155 °C | -65 ░C | Free Hanging (In-Line) | Straight | Snap-On | Jack to Jack | Same Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 300 | $ 9.86 | |
Description
General part information
17K117 Series
Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
