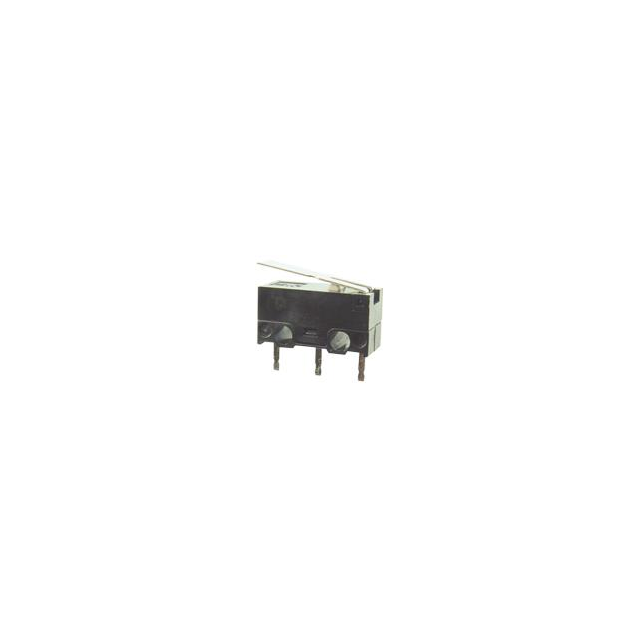

ZMA00A150P00RC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION N.O./N.C. SPDT PIN PLUNGER 0.1A 125VAC 60VDC 1.47N THRU-HOLE PC PINS BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet zmasnap +1

ZMA00A150P00RC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION N.O./N.C. SPDT PIN PLUNGER 0.1A 125VAC 60VDC 1.47N THRU-HOLE PC PINS BULK

Deep-Dive with AI

DocumentsDatasheet zmasnap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMA00A150P00RC

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Electrical Life	300000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	150 gf
Operating Position	0.272 in
Operating Position	6.9 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.2 mm
Overtravel	0.008 in
Pretravel	0.024 in
Pretravel	0.6 mm
Release Force	35 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	60 VDC

Zma0 Series Series

Basic / Snap Action Switches SPDT SUB-MIN 3A Mini Size Snap-acting Switches

Part	Electrical Life	Termination Style	Mechanical Life	Switch Function	Pretravel	Pretravel	Overtravel	Overtravel	Operating Force	Release Force	Voltage Rating - AC	Operating Position	Operating Position	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Circuit	Current Rating (Amps)	Operating Position [x]	Operating Position [x]
Littelfuse/Commercial Vehicle Products ZMA00A150P00LC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Round (Pin Plunger)	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A150A03RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.154 in	3.9 mm	0.5 mm	0.02 in	65 gf	10 gf	125 V	0.539 in	13.7 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Lever Roller	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A080A03RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.154 in	3.9 mm	0.5 mm	0.02 in	34 gf	6 gf	125 V	0.539 in	13.7 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Lever Roller	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A080S07PC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.17 in	4.3 mm	0.5 mm	0.02 in	40 gf	2 gf	125 V			60 VDC	85 °C	-40 °C	Through Hole	Lever Simulated Roller	SPDT	100 mA	9.7 mm	0.38 in
Littelfuse/Commercial Vehicle Products ZMA00A150P00KC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	60 VDC	85 °C	-40 °C	Through Hole	Round (Pin Plunger)	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A080S03PC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.138 in	3.5 mm	0.7 mm	0.026 in			125 V			60 VDC	85 °C	-40 °C	Through Hole	Lever Simulated Roller	SPDT	100 mA	9.8 mm	0.386 in
Littelfuse/Commercial Vehicle Products ZMA00A150S06RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.055 in	1.4 mm	1.25 mm	0.049 in	49 gf	11 gf	125 V			60 VDC	85 °C	-40 °C	Through Hole Right Angle	Lever Simulated Roller	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A150P00RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Round (Pin Plunger)	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA03A150P00PC	10000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	24 V	85 °C	-40 °C	Through Hole	Round (Pin Plunger)	SPDT	3 A
Littelfuse/Commercial Vehicle Products ZMA03A150L04LC	10000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.12 in	3 mm	0.6 mm	0.025 "	50 gf	8 gf	125 V	0.312 in	7.9 mm	24 V	85 °C	-40 °C	Through Hole Right Angle	Lever Straight	SPDT	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Zma0 Series Series

C&K’s ZMA series mini size snap-acting switches are often found used in PCB detection switches, communication devices and various types of testing equipment. Featuring a compact size (which is ideal when space is limited) and a reliable snap-acting mechanism, the ZMA series give applications a long electrical and mechanical life, ensuing they stand up to repeated use.
