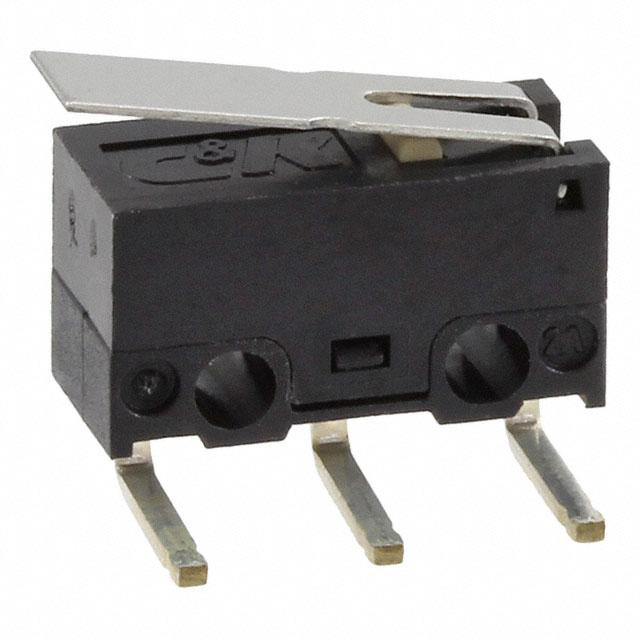

ZMA03A150L04LC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet zmasnap +1

ZMA03A150L04LC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet zmasnap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMA03A150L04LC

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	10000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	50 gf
Operating Position	0.312 in
Operating Position	7.9 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.6 mm
Overtravel	0.025 "
Pretravel	0.12 in
Pretravel	3 mm
Release Force	8 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Zma0 Series Series

Basic / Snap Action Switches SPDT SUB-MIN 3A Mini Size Snap-acting Switches

Part	Electrical Life	Termination Style	Mechanical Life	Switch Function	Pretravel	Pretravel	Overtravel	Overtravel	Operating Force	Release Force	Voltage Rating - AC	Operating Position	Operating Position	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Circuit	Current Rating (Amps)	Operating Position [x]	Operating Position [x]
Littelfuse/Commercial Vehicle Products ZMA00A150P00LC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Round (Pin Plunger)	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A150A03RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.154 in	3.9 mm	0.5 mm	0.02 in	65 gf	10 gf	125 V	0.539 in	13.7 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Lever Roller	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A080A03RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.154 in	3.9 mm	0.5 mm	0.02 in	34 gf	6 gf	125 V	0.539 in	13.7 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Lever Roller	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A080S07PC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.17 in	4.3 mm	0.5 mm	0.02 in	40 gf	2 gf	125 V			60 VDC	85 °C	-40 °C	Through Hole	Lever Simulated Roller	SPDT	100 mA	9.7 mm	0.38 in
Littelfuse/Commercial Vehicle Products ZMA00A150P00KC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	60 VDC	85 °C	-40 °C	Through Hole	Round (Pin Plunger)	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A080S03PC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.138 in	3.5 mm	0.7 mm	0.026 in			125 V			60 VDC	85 °C	-40 °C	Through Hole	Lever Simulated Roller	SPDT	100 mA	9.8 mm	0.386 in
Littelfuse/Commercial Vehicle Products ZMA00A150S06RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.055 in	1.4 mm	1.25 mm	0.049 in	49 gf	11 gf	125 V			60 VDC	85 °C	-40 °C	Through Hole Right Angle	Lever Simulated Roller	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA00A150P00RC	300000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	60 VDC	85 °C	-40 °C	Through Hole Right Angle	Round (Pin Plunger)	SPDT	100 mA
Littelfuse/Commercial Vehicle Products ZMA03A150P00PC	10000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.024 in	0.6 mm	0.2 mm	0.008 in	150 gf	35 gf	125 V	0.272 in	6.9 mm	24 V	85 °C	-40 °C	Through Hole	Round (Pin Plunger)	SPDT	3 A
Littelfuse/Commercial Vehicle Products ZMA03A150L04LC	10000 Cycles	PC Pin	1000000 Cycles	On-Mom	0.12 in	3 mm	0.6 mm	0.025 "	50 gf	8 gf	125 V	0.312 in	7.9 mm	24 V	85 °C	-40 °C	Through Hole Right Angle	Lever Straight	SPDT	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Zma0 Series Series

C&K’s ZMA series mini size snap-acting switches are often found used in PCB detection switches, communication devices and various types of testing equipment. Featuring a compact size (which is ideal when space is limited) and a reliable snap-acting mechanism, the ZMA series give applications a long electrical and mechanical life, ensuing they stand up to repeated use.
