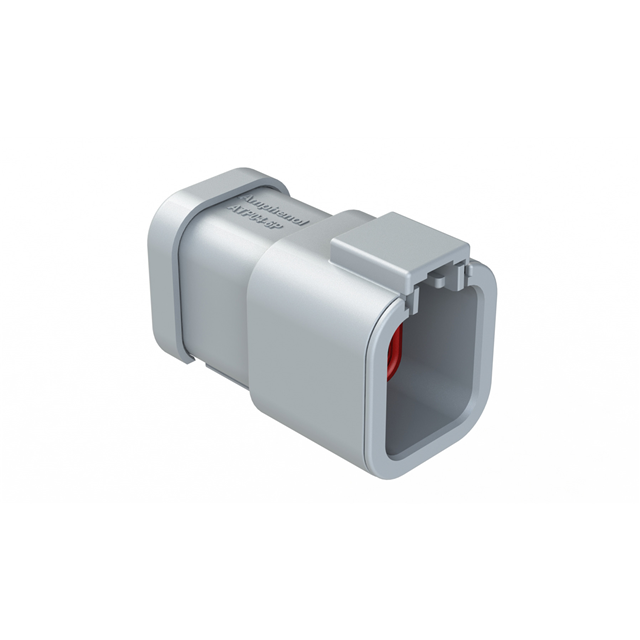

ATP04-6P-EC01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 6POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsATP Series Datasheet +1

ATP04-6P-EC01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 6POS

Deep-Dive with AI

DocumentsATP Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP04-6P-EC01

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATP04-6P Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Contact Type	Note	Mounting Type	Fastening Type	Number of Rows	Color	Number of Positions	Contact Termination	Features	For Use With/Related Products	Accessory Type	Contact Material	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Shape	Ingress Protection
Amphenol Sine Systems Corp ATP04-6P-RD01	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp
Amphenol Sine Systems Corp ATP04-6P-RD01BK	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Black	6	Crimp
Amphenol Sine Systems Corp ATP04-6P-BLK	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Black	6	Crimp	Sealed
Amphenol Sine Systems Corp ATP04-6PA-BUS											6		Sealed	ATP Series™	Terminator
Amphenol Sine Systems Corp ATP04-6P-BM14	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin		Through Hole	Latch Holder	3		6		Board Guide Potting Wall Sealed			Copper Alloy	Black	25 A	0.146 in	3.7 mm	Board to Cable/Wire	6.71 mm	0.264 in	All	Tin	Solder	10.16 mm	0.4 in	Shrouded - 4 Wall	Circular	IP68 IP69K
Amphenol Sine Systems Corp ATP04-6P	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp	Sealed
Amphenol Sine Systems Corp ATP04-6PB-BUS											6		Sealed	ATP Series™	Terminator
Amphenol Sine Systems Corp ATP04-6P-MM01	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp
Amphenol Sine Systems Corp ATP04-6P-PM05ECBK	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin				2	Black	6	Crimp	Cap (Cover) IP68 Mounting Flange Sealed
Amphenol Sine Systems Corp ATP04-6P-EC01	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.54
		10	$ 6.82
		25	$ 6.44
		50	$ 6.28
		200	$ 5.97
		400	$ 5.34
		600	$ 5.03
		1000	$ 4.40

Description

General part information

ATP04-6P Series

6 Rectangular Connectors - Housings Receptacle Gray

Documents

Technical documentation and resources

ATP Series

Datasheet

A Series Family

Datasheet
