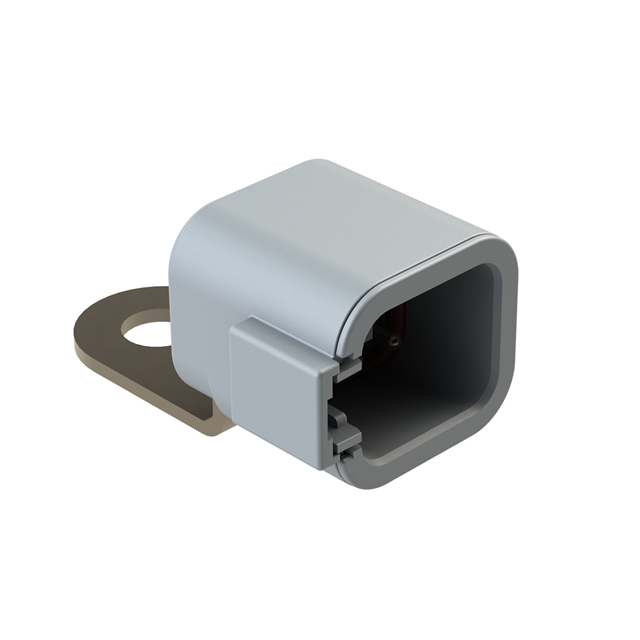

ATP04-6PA-BUS

Active

Amphenol Sine Systems Corp

6-POSITION RECEPTACLE, MALE, BUS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family ATP Series +1

ATP04-6PA-BUS

Active

Amphenol Sine Systems Corp

6-POSITION RECEPTACLE, MALE, BUS

Deep-Dive with AI

DocumentsA Series Family ATP Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP04-6PA-BUS

Accessory Type	Terminator
Features	Sealed
For Use With/Related Products	ATP Series™
Number of Positions	6

ATP04-6P Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Contact Type	Note	Mounting Type	Fastening Type	Number of Rows	Color	Number of Positions	Contact Termination	Features	For Use With/Related Products	Accessory Type	Contact Material	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Shape	Ingress Protection
Amphenol Sine Systems Corp ATP04-6P-RD01	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp
Amphenol Sine Systems Corp ATP04-6P-RD01BK	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Black	6	Crimp
Amphenol Sine Systems Corp ATP04-6P-BLK	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Black	6	Crimp	Sealed
Amphenol Sine Systems Corp ATP04-6PA-BUS											6		Sealed	ATP Series™	Terminator
Amphenol Sine Systems Corp ATP04-6P-BM14	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin		Through Hole	Latch Holder	3		6		Board Guide Potting Wall Sealed			Copper Alloy	Black	25 A	0.146 in	3.7 mm	Board to Cable/Wire	6.71 mm	0.264 in	All	Tin	Solder	10.16 mm	0.4 in	Shrouded - 4 Wall	Circular	IP68 IP69K
Amphenol Sine Systems Corp ATP04-6P	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp	Sealed
Amphenol Sine Systems Corp ATP04-6PB-BUS											6		Sealed	ATP Series™	Terminator
Amphenol Sine Systems Corp ATP04-6P-MM01	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp
Amphenol Sine Systems Corp ATP04-6P-PM05ECBK	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin				2	Black	6	Crimp	Cap (Cover) IP68 Mounting Flange Sealed
Amphenol Sine Systems Corp ATP04-6P-EC01	-55 °C	125 °C	Thermoplastic	Receptacle	Male Pin	Contacts Not Included	Free Hanging (In-Line)	Latch Holder	3	Gray	6	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.62
		10	$ 22.08
		25	$ 20.00
		50	$ 18.60
		100	$ 17.33
		250	$ 15.83
		500	$ 14.82

Description

General part information

ATP04-6P Series

Connector Terminator For ATP Series™

Documents

Technical documentation and resources

A Series Family

Datasheet

ATP Series

Datasheet
