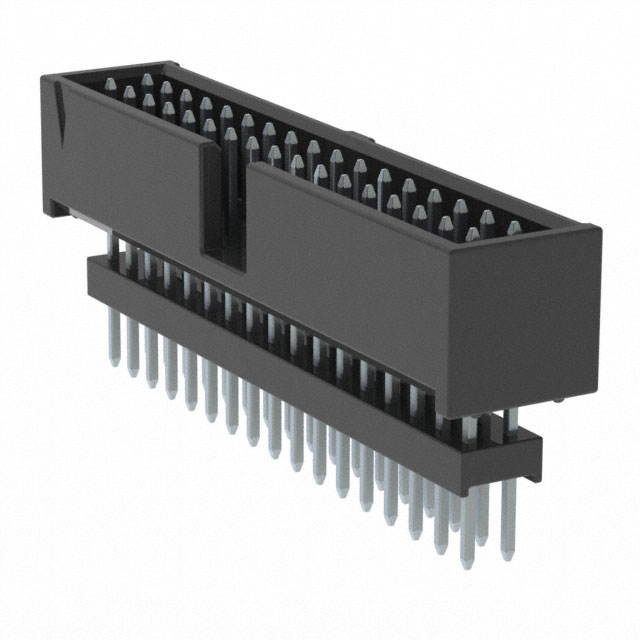

ZSS-117-02-T-D-565

Active

Samtec Inc.

CONN ELEVATED SHROUDED HEADER HDR 34 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ELEVATED SHROUDED HEADER HDR 34 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-117-02-T-D-565

Connector Type	Elevated, Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.565 in
Insulation Height	14.35 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.73 in
Overall Contact Length	18.54 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Fastening Type	Current Rating (Amps)	Features	Mounting Type	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Style	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Material	Contact Finish - Post	Insulation Color	Contact Type	Insulation Height	Insulation Height	Number of Rows	Contact Shape	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions
Samtec Inc. ZSS-117-05-G-D-885
Samtec Inc. ZSS-117-03-L-D-670
Samtec Inc. ZSS-117-06-G-D-450
Samtec Inc. ZSS-117-02-S-D-640
Samtec Inc. ZSS-117-08-T-D-1215
Samtec Inc. ZSS-117-07-G-D-1135
Samtec Inc. ZSS-117-02-T-D-565	Solder	105 ░C	-55 °C	Shrouded - 4 Wall	Push-Pull	3 A	Keying Slot	Through Hole	UL94 V-0	0.73 in	18.54 mm	Board to Board Cable	0.165 in	4.19 mm	Polyester Glass Filled	Phosphor Bronze	Tin	Black	Male Pin	0.565 in	14.35 mm	2	Square	All	0.1 in	2.54 mm	6.35 mm	0.25 in	2.54 mm	0.1 in	Elevated Header	34
Samtec Inc. ZSS-117-03-G-D-740
Samtec Inc. ZSS-117-09-G-D-1285
Samtec Inc. ZSS-117-04-S-D-810

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.72
		50	$ 3.03
Digikey	Bulk	1	$ 3.72
