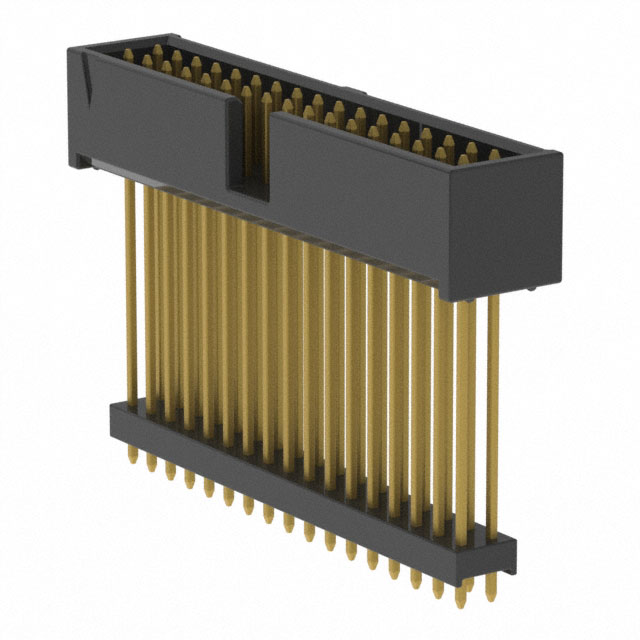

ZSS-117-07-G-D-1135

Active

Samtec Inc.

CONN HDR .100" 34POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR .100" 34POS

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-117-07-G-D-1135

null

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Fastening Type	Current Rating (Amps)	Features	Mounting Type	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Style	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Material	Contact Finish - Post	Insulation Color	Contact Type	Insulation Height	Insulation Height	Number of Rows	Contact Shape	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions
Samtec Inc. ZSS-117-05-G-D-885
Samtec Inc. ZSS-117-03-L-D-670
Samtec Inc. ZSS-117-06-G-D-450
Samtec Inc. ZSS-117-02-S-D-640
Samtec Inc. ZSS-117-08-T-D-1215
Samtec Inc. ZSS-117-07-G-D-1135
Samtec Inc. ZSS-117-02-T-D-565	Solder	105 ░C	-55 °C	Shrouded - 4 Wall	Push-Pull	3 A	Keying Slot	Through Hole	UL94 V-0	0.73 in	18.54 mm	Board to Board Cable	0.165 in	4.19 mm	Polyester Glass Filled	Phosphor Bronze	Tin	Black	Male Pin	0.565 in	14.35 mm	2	Square	All	0.1 in	2.54 mm	6.35 mm	0.25 in	2.54 mm	0.1 in	Elevated Header	34
Samtec Inc. ZSS-117-03-G-D-740
Samtec Inc. ZSS-117-09-G-D-1285
Samtec Inc. ZSS-117-04-S-D-810

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.44

General part information

Connector Header position

Technical documentation and resources
