121586-5238

Active

ITT Cannon, LLC

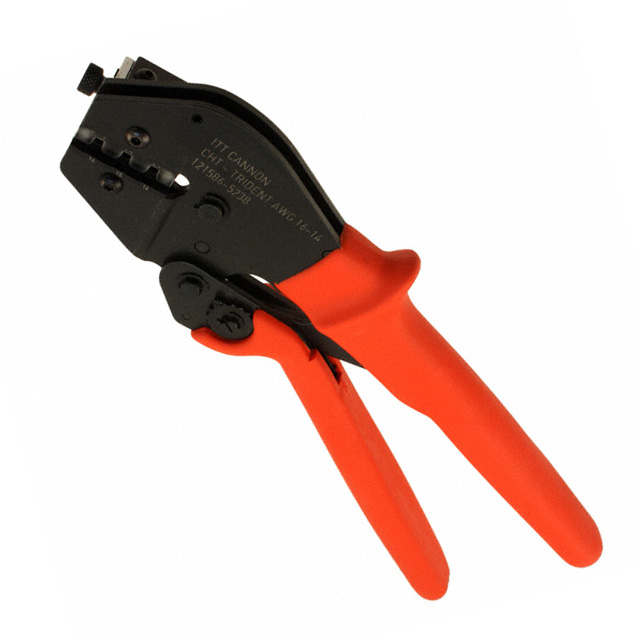

TOOL HAND CRIMPER 14-16AWG SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

121586-5238

Active

ITT Cannon, LLC

TOOL HAND CRIMPER 14-16AWG SIDE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	121586-5238

For Use With/Related Products	Circular and Rectangular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	16 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

12158 Series

Part	Tool Type	For Use With/Related Products	Housing Color	Insert Material	Orientation	Fastening Type	Type	Connector Type	Shielding	Shell Material	Features	Ingress Protection	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Note	Mounting Feature	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Ratcheting	Wire Entry Location	Mounting Type
ITT Cannon, LLC 121586-0122	Extraction Tool	Circular Connectors
ITT Cannon, LLC 1215865132
ITT Cannon, LLC 1215865134
ITT Cannon, LLC 121583-0020			Black	Polybutylene Terephthalate (PBT) Glass Filled	1	Bayonet Lock	For Male Pins	Receptacle Housing	Unshielded	Polybutylene Terephthalate (PBT) Glass Filled	Coupling Nut	IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included	Flange	7
ITT Cannon, LLC 121583-0027			Black	Polybutylene Terephthalate (PBT) Glass Filled	1	Bayonet Lock	For Female Sockets	Receptacle Housing	Unshielded	Polybutylene Terephthalate (PBT) Glass Filled		IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included	Bulkhead - Rear Side Nut	2
ITT Cannon, LLC 121586-5238	Hand Crimper	Circular and Rectangular Contacts																		14 AWG	16 AWG	Ratchet	Side Entry
ITT Cannon, LLC 121586-5237	Hand Crimper	Circular and Rectangular Contacts																		16 AWG	28 AWG	Ratchet	Side Entry
ITT Cannon, LLC 121583-0025			Black	Polybutylene Terephthalate (PBT) Glass Filled	1	Bayonet Lock	For Female Sockets	Plug Housing	Unshielded	Polybutylene Terephthalate (PBT) Glass Filled	Coupling Nut	IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included		2					Free Hanging (In-Line)
ITT Cannon, LLC 121586-5241	Hand Crimper	Circular and Rectangular Contacts																		12 AWG	20 AWG	Ratchet	Side Entry
ITT Cannon, LLC 121583-0058			Black	Polyamide (PA66) Nylon 6/6	1	Bayonet Lock	For Female Sockets	Plug Housing	Unshielded	Polyamide (PA66) Nylon 6/6 Glass Filled		IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included		37					Free Hanging (In-Line)
