121583-0027

Active

ITT Cannon, LLC

APD RECP J/N PIN 2 BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

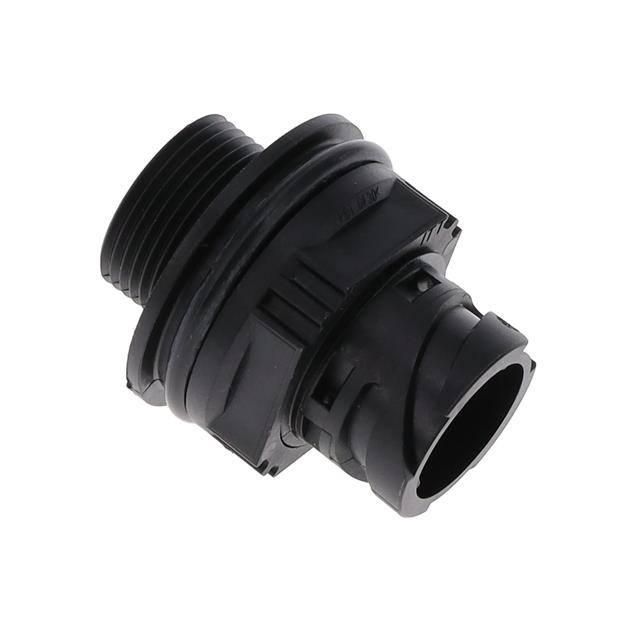

121583-0027

Active

ITT Cannon, LLC

APD RECP J/N PIN 2 BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	121583-0027

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Type	For Female Sockets

12158 Series

Part	Tool Type	For Use With/Related Products	Housing Color	Insert Material	Orientation	Fastening Type	Type	Connector Type	Shielding	Shell Material	Features	Ingress Protection	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Note	Mounting Feature	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Ratcheting	Wire Entry Location	Mounting Type
ITT Cannon, LLC 121586-0122	Extraction Tool	Circular Connectors
ITT Cannon, LLC 1215865132
ITT Cannon, LLC 1215865134
ITT Cannon, LLC 121583-0020			Black	Polybutylene Terephthalate (PBT) Glass Filled	1	Bayonet Lock	For Male Pins	Receptacle Housing	Unshielded	Polybutylene Terephthalate (PBT) Glass Filled	Coupling Nut	IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included	Flange	7
ITT Cannon, LLC 121583-0027			Black	Polybutylene Terephthalate (PBT) Glass Filled	1	Bayonet Lock	For Female Sockets	Receptacle Housing	Unshielded	Polybutylene Terephthalate (PBT) Glass Filled		IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included	Bulkhead - Rear Side Nut	2
ITT Cannon, LLC 121586-5238	Hand Crimper	Circular and Rectangular Contacts																		14 AWG	16 AWG	Ratchet	Side Entry
ITT Cannon, LLC 121586-5237	Hand Crimper	Circular and Rectangular Contacts																		16 AWG	28 AWG	Ratchet	Side Entry
ITT Cannon, LLC 121583-0025			Black	Polybutylene Terephthalate (PBT) Glass Filled	1	Bayonet Lock	For Female Sockets	Plug Housing	Unshielded	Polybutylene Terephthalate (PBT) Glass Filled	Coupling Nut	IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included		2					Free Hanging (In-Line)
ITT Cannon, LLC 121586-5241	Hand Crimper	Circular and Rectangular Contacts																		12 AWG	20 AWG	Ratchet	Side Entry
ITT Cannon, LLC 121583-0058			Black	Polyamide (PA66) Nylon 6/6	1	Bayonet Lock	For Female Sockets	Plug Housing	Unshielded	Polyamide (PA66) Nylon 6/6 Glass Filled		IP67 - Dust Tight Waterproof	Crimp	125 °C	-40 °C	Circular	Contacts Not Included		37					Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.83
		10	$ 5.27
		25	$ 4.98
		50	$ 4.86
		100	$ 4.61
		300	$ 4.28

Description

General part information

12158 Series

2 (Power) Position Circular Connector Receptacle Housing Panel Mount
