71035-506

Active

Laird Thermal Systems, Inc.

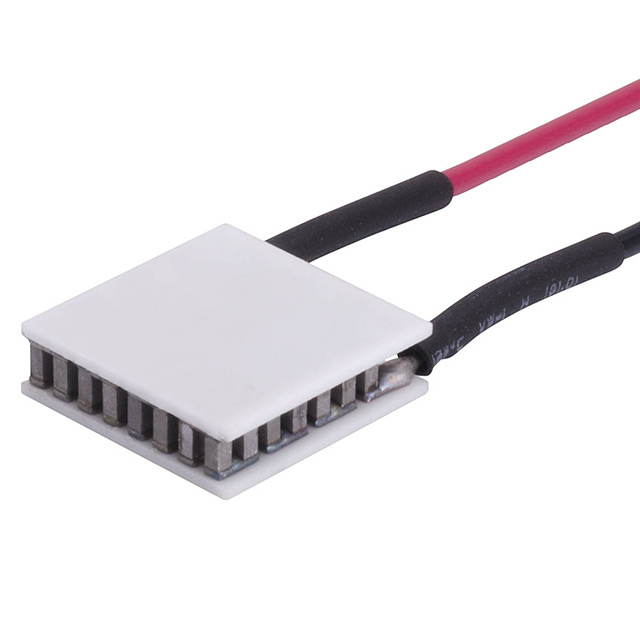

PELTIER CP08,31,06,L,EP,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP08,31,06,L,EP,W4.5

Technical Specifications

Parameters and characteristics for this part

Part	Qmax @ Th	Features	Number of Stages	Delta Tmax @ Th	Resistance	Voltage - Max [Max]	Operating Temperature	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Height [z]
Laird Thermal Systems, Inc. 71035-506	4.5 W	Lead Wires Sealed - Epoxy	1	67 °C	1.54 Ohms	3.7 V	80 °C	12.3 mm	12.3 mm	2.1 A	3.4 mm
Laird Thermal Systems, Inc. 71035-505	4.5 W	Lead Wires Non-Sealed	1	67 °C	1.54 Ohms	3.7 V	80 °C	12.29 mm	12.29 mm	2.1 A	3.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 4.5W @ 25°C 2.1 A 80°C
