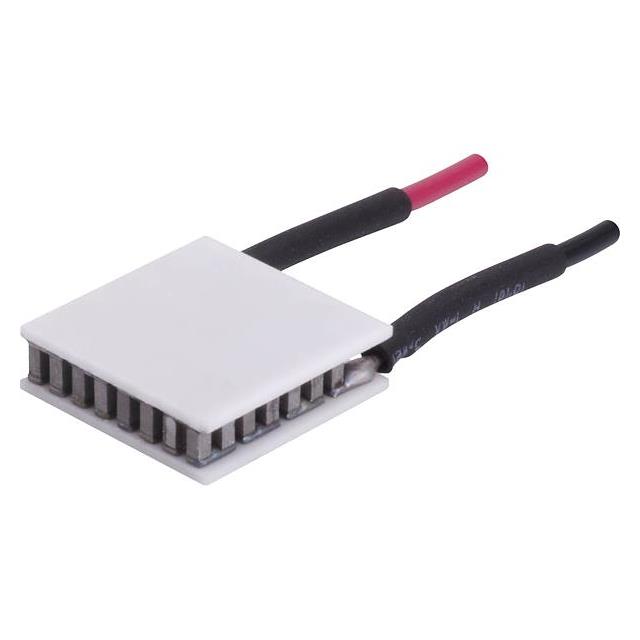

71035-505
ActiveLaird Thermal Systems, Inc.
PELTIER CP08,31,06,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
71035-505
ActiveLaird Thermal Systems, Inc.
PELTIER CP08,31,06,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 71035-505 |
|---|---|
| Current - Max [Max] | 2.1 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.4 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 4.5 W |
| Resistance | 1.54 Ohms |
| Size / Dimension [x] | 12.29 mm |
| Size / Dimension [y] | 12.29 mm |
| Voltage - Max [Max] | 3.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.10 | |
| 5 | $ 24.63 | |||
| 20 | $ 23.89 | |||
| 40 | $ 23.15 | |||
| 60 | $ 22.56 | |||
| 100 | $ 21.97 | |||
Description
General part information
71035 Series
Peltier Module 4.5W @ 25°C 2.1 A 80°C
