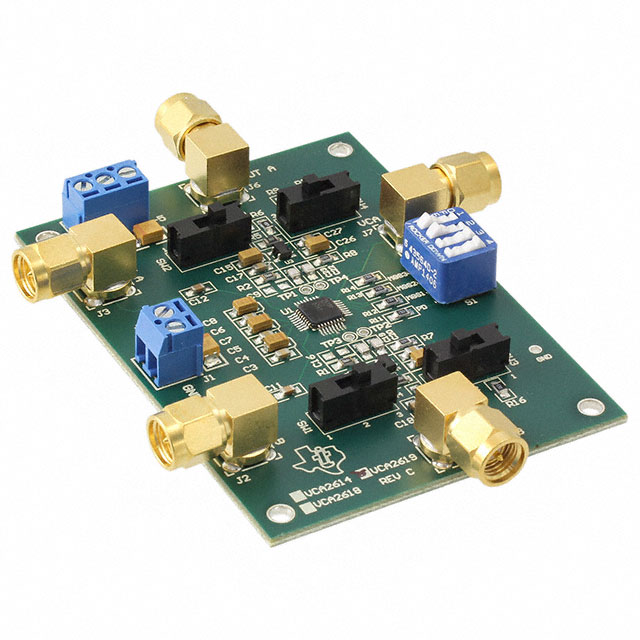

VCA2619EVM

Obsolete

Texas Instruments

EVAL MODULE FOR VCA2619

Search across all available documentation for this part.

Obsolete

Texas Instruments

EVAL MODULE FOR VCA2619

Technical Specifications

Parameters and characteristics for this part

Specification	VCA2619EVM

-3db Bandwidth	20 MHz
Board Type	Fully Populated
Channels per IC	2 - Dual
Current - Output / Channel [custom]	40 mA
Output Type	Differential
Slew Rate	300 V/µs
Supplied Contents	Board(s)
Utilized IC / Part	VCA2619
Voltage - Supply, Single/Dual (±) [Max]	5.25 V
Voltage - Supply, Single/Dual (±) [Min]	4.75 V

Part	Mounting Type	Package / Case	Current - Output / Channel [custom]	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Voltage - Input Offset	Slew Rate	Gain Bandwidth Product	Number of Circuits	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Output Type	Supplied Contents	Board Type	Utilized IC / Part	Channels per IC	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]
Texas Instruments VCA2619YR	Surface Mount	32-TQFP	40 mA	4.75 V	1 nA	85 °C	-40 °C	20 MHz	50 mV	300 V/µs	100 MHz	2	5.25 V	32-TQFP (5x5)	Differential
Texas Instruments VCA2619YT	Surface Mount	32-TQFP	40 mA	4.75 V	1 nA	85 °C	-40 °C	20 MHz	50 mV	300 V/µs	100 MHz	2	5.25 V	32-TQFP (5x5)	Differential
Texas Instruments VCA2619EVM			40 mA					20 MHz		300 V/µs					Differential	Board(s)	Fully Populated	VCA2619	2 - Dual	5.25 V	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 104.54

General part information

VCA2619 2 - Dual Channels per IC Variable Gain Amplifier Evaluation Board
