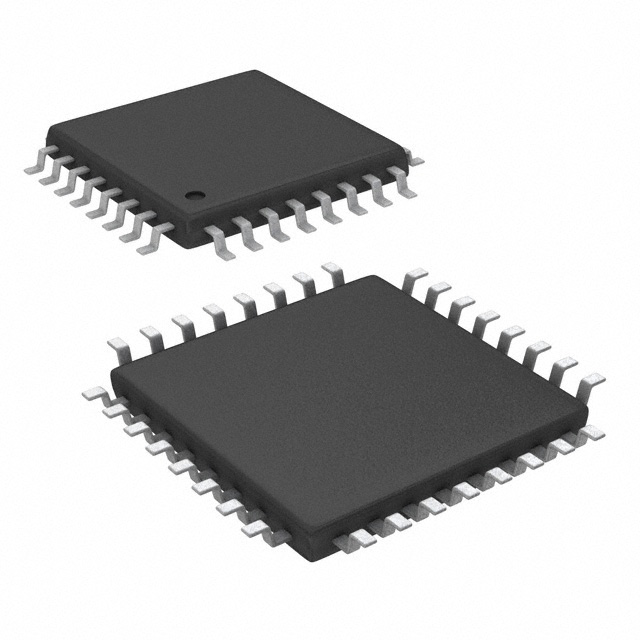

VCA2619YT

Obsolete

Texas Instruments

IC VARIABLE GAIN 2 CIRC 32TQFP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC VARIABLE GAIN 2 CIRC 32TQFP

Technical Specifications

Parameters and characteristics for this part

Specification	VCA2619YT

-3db Bandwidth	20 MHz
Current - Input Bias	1 nA
Current - Output / Channel [custom]	40 mA
Gain Bandwidth Product	100 MHz
Mounting Type	Surface Mount
Number of Circuits	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Differential
Package / Case	32-TQFP
Slew Rate	300 V/µs
Supplier Device Package	32-TQFP (5x5)
Voltage - Input Offset	50 mV
Voltage - Supply Span (Max) [Max]	5.25 V
Voltage - Supply Span (Min) [Min]	4.75 V

Part	Mounting Type	Package / Case	Current - Output / Channel [custom]	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Voltage - Input Offset	Slew Rate	Gain Bandwidth Product	Number of Circuits	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Output Type	Supplied Contents	Board Type	Utilized IC / Part	Channels per IC	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]
Texas Instruments VCA2619YR	Surface Mount	32-TQFP	40 mA	4.75 V	1 nA	85 °C	-40 °C	20 MHz	50 mV	300 V/µs	100 MHz	2	5.25 V	32-TQFP (5x5)	Differential
Texas Instruments VCA2619YT	Surface Mount	32-TQFP	40 mA	4.75 V	1 nA	85 °C	-40 °C	20 MHz	50 mV	300 V/µs	100 MHz	2	5.25 V	32-TQFP (5x5)	Differential
Texas Instruments VCA2619EVM			40 mA					20 MHz		300 V/µs					Differential	Board(s)	Fully Populated	VCA2619	2 - Dual	5.25 V	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Variable Gain Amplifier 2 Circuit Differential 32-TQFP (5x5)
