2901363

Obsolete

Phoenix Contact

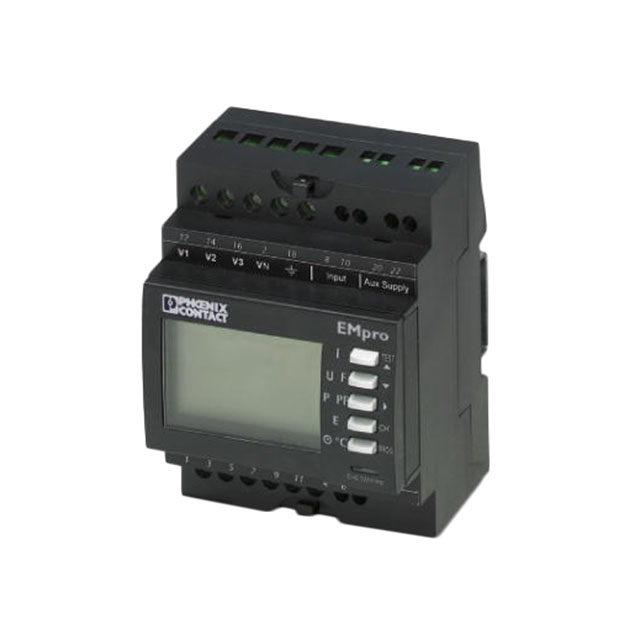

POWER METER LCD DIN RAIL

Search across all available documentation for this part.

Documents2901363

Obsolete

Phoenix Contact

POWER METER LCD DIN RAIL

Documents2901363

Technical Specifications

Parameters and characteristics for this part

Specification	2901363

Display Type	LCD - Black Characters
Ingress Protection	IP51 - Dust Protected
Measuring Range [Max]	519 VAC, 9999 A
Measuring Range [Min]	0 A, 28 VAC
Measuring Type	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	Solid State, Option Cards Available
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	277 VAC/DC
Voltage - Supply [Min]	110 VAC
Weight	312.07 g
Weight	0.688 lb

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Weight	Weight	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Measuring Type	Measuring Range [Max]	Measuring Range [Min]	Weight	Output Type	Mounting Type	Ingress Protection
Phoenix Contact 2901366	55 °C	-10 °C	Energy Monitor	816.5 g	1.8 lbs	Screw Terminal	92 mm	92 mm	110 VDC 120 V	240 VDC 250 V	LCD - Black Characters Backlight	Current (3-Phase) Voltage Wattage	700 VAC 9999 A	0 A 11 VAC
Phoenix Contact 2901364	55 °C	-10 °C	Energy Monitor		400.07 g	Screw Terminal	92 mm	92 mm	110 VAC	400 VAC	LCD - Black Characters Backlight	Current (3-Phase) Voltage Wattage	500 VAC 9999 A	0 A 28 VAC	0.882 lb
Phoenix Contact 2901363	55 °C	-10 °C	Energy Monitor		312.07 g	Screw Terminal			110 VAC	277 VAC/DC	LCD - Black Characters	Current (3-Phase) Voltage Wattage	519 VAC 9999 A	0 A 28 VAC	0.688 lb	Solid State Option Cards Available	DIN Rail	IP51 - Dust Protected
Phoenix Contact 2901362	55 °C	-10 °C	Energy Monitor			Screw Terminal			110 VAC	277 VAC/DC	LCD - Black Characters	Current (3-Phase) Voltage Wattage	519 VAC 9999 A	0 A 28 VAC		Solid State	DIN Rail	IP51 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Energy Monitor LCD - Black Characters Display DIN Rail
