2901366

Obsolete

Phoenix Contact

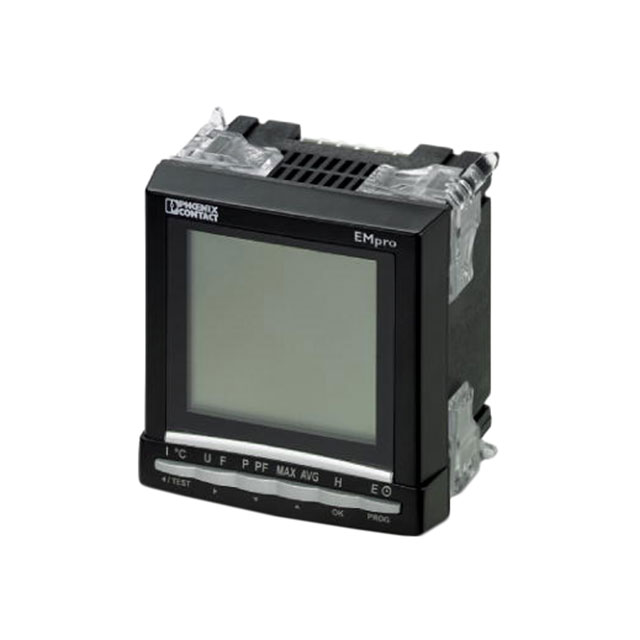

POWER METER LCD PANEL MOUNT

Search across all available documentation for this part.

Documents2901366

Obsolete

Phoenix Contact

POWER METER LCD PANEL MOUNT

Documents2901366

Technical Specifications

Parameters and characteristics for this part

Specification	2901366

Display Type	LCD - Black Characters, Backlight
Measuring Range [Max]	9999 A, 700 VAC
Measuring Range [Min]	11 VAC, 0 A
Measuring Type	Current (3-Phase), Wattage, Voltage
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	92 mm
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	240 VDC, 250 V
Voltage - Supply [Min]	110 VDC, 120 V
Weight	816.5 g
Weight	1.8 lbs

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Weight	Weight	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Measuring Type	Measuring Range [Max]	Measuring Range [Min]	Weight	Output Type	Mounting Type	Ingress Protection
Phoenix Contact 2901366	55 °C	-10 °C	Energy Monitor	816.5 g	1.8 lbs	Screw Terminal	92 mm	92 mm	110 VDC 120 V	240 VDC 250 V	LCD - Black Characters Backlight	Current (3-Phase) Voltage Wattage	700 VAC 9999 A	0 A 11 VAC
Phoenix Contact 2901364	55 °C	-10 °C	Energy Monitor		400.07 g	Screw Terminal	92 mm	92 mm	110 VAC	400 VAC	LCD - Black Characters Backlight	Current (3-Phase) Voltage Wattage	500 VAC 9999 A	0 A 28 VAC	0.882 lb
Phoenix Contact 2901363	55 °C	-10 °C	Energy Monitor		312.07 g	Screw Terminal			110 VAC	277 VAC/DC	LCD - Black Characters	Current (3-Phase) Voltage Wattage	519 VAC 9999 A	0 A 28 VAC	0.688 lb	Solid State Option Cards Available	DIN Rail	IP51 - Dust Protected
Phoenix Contact 2901362	55 °C	-10 °C	Energy Monitor			Screw Terminal			110 VAC	277 VAC/DC	LCD - Black Characters	Current (3-Phase) Voltage Wattage	519 VAC 9999 A	0 A 28 VAC		Solid State	DIN Rail	IP51 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount
