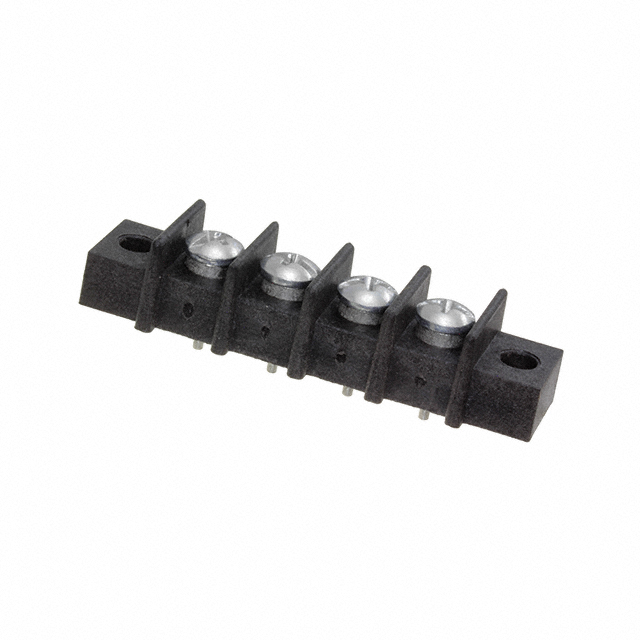

GBPAX-4
ActiveCurtis Industries
BLACK BARRIER TERMINAL BLOCKS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBPAX-4 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Operating Temperature | 110 °C |
| Pitch [x] | 11.12 mm |
| Pitch [x] | 0.438 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
GBPAX Series
| Part | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits | Features | Material - Insulation | Barrier Type | Mounting Type | Color | Pitch [x] | Pitch [x] | Top Termination | Number of Rows | Current Rating (Amps) | Bottom Termination | Terminal Screw Material | Operating Temperature | Terminal Block Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | 4 | 12 AWG | 22 AWG | 4 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 |
Curtis Industries | 2 | 12 AWG | 22 AWG | 2 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 |
Curtis Industries | 12 AWG | 22 AWG | 24 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 | |
Curtis Industries | 9 | 12 AWG | 22 AWG | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 | |
Curtis Industries | 25 | 12 AWG | 22 AWG | 25 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 |
Curtis Industries | 26 | 12 AWG | 22 AWG | 26 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 |
Curtis Industries | 19 | 12 AWG | 22 AWG | 19 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 |
Curtis Industries | 3 | 12 AWG | 22 AWG | 3 | Flange | Polyphenylene Oxide (PPO) | 2 Wall (Dual) | Chassis Panel Through Hole | Black | 11.12 mm | 0.438 in | Screws | 1 | 20 A | PC Pin | Steel | 110 °C | Barrier Block | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GBPAX Series
4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
