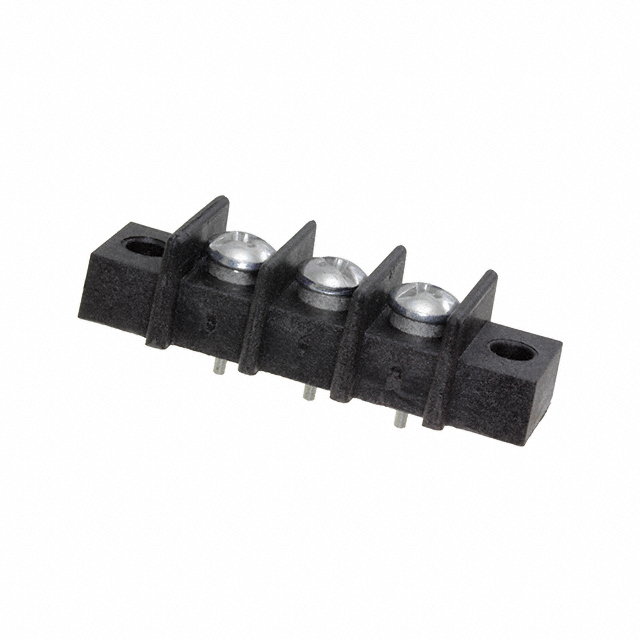

GBPAX-3

Active

Curtis Industries

BLACK BARRIER TERMINAL BLOCKS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBPAX-3

Active

Curtis Industries

BLACK BARRIER TERMINAL BLOCKS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GBPAX-3

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	3
Number of Rows	1
Number of Wire Entries	3
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GBPAX Series

Part	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Features	Material - Insulation	Barrier Type	Mounting Type	Color	Pitch [x]	Pitch [x]	Top Termination	Number of Rows	Current Rating (Amps)	Bottom Termination	Terminal Screw Material	Operating Temperature	Terminal Block Type	Material Flammability Rating
Curtis Industries GBPAX-4	4	12 AWG	22 AWG	4	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-2	2	12 AWG	22 AWG	2	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-24		12 AWG	22 AWG	24	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-9	9	12 AWG	22 AWG		Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-25	25	12 AWG	22 AWG	25	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-26	26	12 AWG	22 AWG	26	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-19	19	12 AWG	22 AWG	19	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0
Curtis Industries GBPAX-3	3	12 AWG	22 AWG	3	Flange	Polyphenylene Oxide (PPO)	2 Wall (Dual)	Chassis Panel Through Hole	Black	11.12 mm	0.438 in	Screws	1	20 A	PC Pin	Steel	110 °C	Barrier Block	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.52
		10	$ 6.04
		25	$ 5.32
		50	$ 4.89
		100	$ 4.53
		250	$ 4.17
		500	$ 3.96
		1000	$ 3.80
LCSC	Piece	1	$ 9.02
		200	$ 3.60
		500	$ 3.48
		1000	$ 3.42

Description

General part information

GBPAX Series

3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
