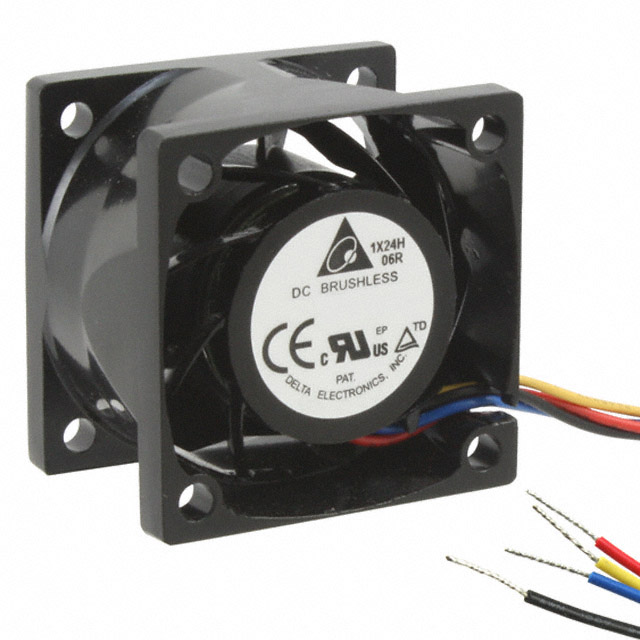

THA0412BN

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 29.52CFM 59DB 40 X 40 X 28MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 29.52CFM 59DB 40 X 40 X 28MM

Technical Specifications

Parameters and characteristics for this part

Specification	THA0412BN

Air Flow	29.5 CFM
Air Flow	0.826 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.89 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10.68 W
RPM	19000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	2.4 in H2O
Static Pressure	597.8 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.102 lb
Weight	46.27 g
Width [y]	28 mm

Part	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Features	Material - Frame	Bearing Type	Fan Type	Static Pressure	Static Pressure	Noise	RPM	Air Flow	Air Flow	Lifetime @ Temp.	Approval Agency	Termination	Voltage - Rated	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Weight	Weight	Current Rating (Amps)	Operating Temperature [Max]	Ingress Protection
Delta Electronics THA0412BN	40 mm	Square	40 mm	10.68 W	13.2 VDC	7 V	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Aluminum	Ball	Tubeaxial	2.4 in H2O	597.8 Pa	59 dB(A)	19000 RPM	29.5 CFM	0.826 m³/min	70000 Hrs	CE cURus TUV	4 Wire Leads	12 VDC	Plastic	70 °C	70 °C	-10 °C	-10 °C	28 mm	0.102 lb	46.27 g	0.89 A
Delta Electronics THA0412AD-TZW3	40 mm	Square	40 mm	5.16 W	15 V	7 V	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Ball	Tubeaxial	1.385 in H2O	345 Pa	52 dB	15600 RPM	20.6 CFM	0.577 mł/min	70000 Hrs	CE cURus TUV	4 Wire Leads	12 VDC	Plastic		70 °C	-25 °C	-25 °C	20 mm	0.057 lb	25.85 g	430 mA	70 °C	IP55 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 29.5 CFM (0.826m³/min) 4 Wire Leads
