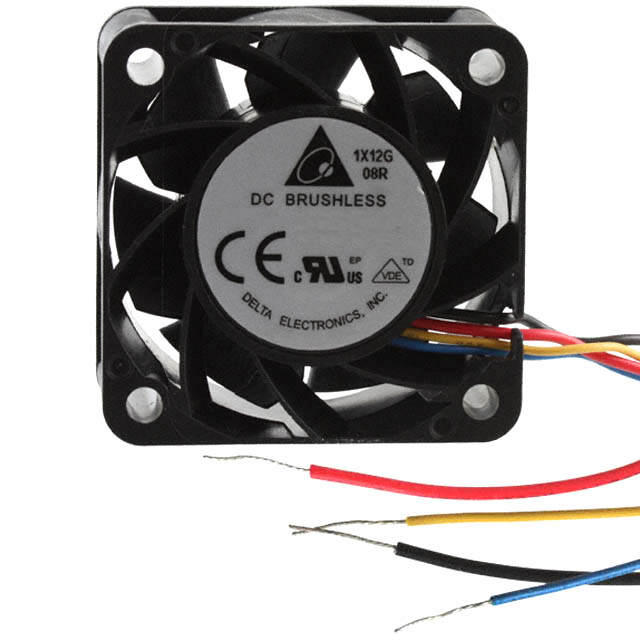

THA0412AD-TZW3

Active

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 40X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	THA0412AD-TZW3

Air Flow	0.577 mł/min
Air Flow	20.6 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	430 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	52 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	5.16 W
RPM	15600 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	1.385 in H2O
Static Pressure	345 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	7 V
Weight	0.057 lb
Weight	25.85 g
Width [y]	20 mm

Part	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Features	Material - Frame	Bearing Type	Fan Type	Static Pressure	Static Pressure	Noise	RPM	Air Flow	Air Flow	Lifetime @ Temp.	Approval Agency	Termination	Voltage - Rated	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Weight	Weight	Current Rating (Amps)	Operating Temperature [Max]	Ingress Protection
Delta Electronics THA0412BN	40 mm	Square	40 mm	10.68 W	13.2 VDC	7 V	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Aluminum	Ball	Tubeaxial	2.4 in H2O	597.8 Pa	59 dB(A)	19000 RPM	29.5 CFM	0.826 m³/min	70000 Hrs	CE cURus TUV	4 Wire Leads	12 VDC	Plastic	70 °C	70 °C	-10 °C	-10 °C	28 mm	0.102 lb	46.27 g	0.89 A
Delta Electronics THA0412AD-TZW3	40 mm	Square	40 mm	5.16 W	15 V	7 V	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	Ball	Tubeaxial	1.385 in H2O	345 Pa	52 dB	15600 RPM	20.6 CFM	0.577 mł/min	70000 Hrs	CE cURus TUV	4 Wire Leads	12 VDC	Plastic		70 °C	-25 °C	-25 °C	20 mm	0.057 lb	25.85 g	430 mA	70 °C	IP55 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 20.6 CFM (0.577m³/min) 4 Wire Leads
