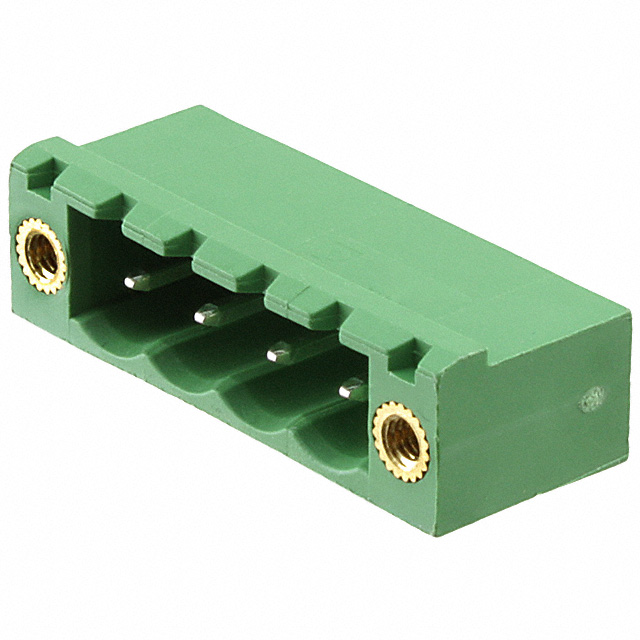

1924101

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 4 POS 5.08MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1924101

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 4 POS 5.08MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1924101

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	16 A
Current - UL	16 A
Features	Mating and Mounting Flange
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	8.61 mm
Insulation Height	0.339 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Positions Per Level	Color	Number of Levels	Termination Style	Type	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Voltage - IEC	Number of Positions	Header Orientation	Features	Voltage - UL	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Pitch [x]	Pitch [x]	Mounting Type	Current - IEC	Housing Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Screw Size	Wire Strip Length	Current - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1927564	2	Black	1	Solder	Header Male Pins Shrouded (4 Side)	UL94 V-0	0.35 in	8.89 mm	400 V	2	90° Right Angle	Mating and Mounting Flange	300 V	2.9 mm	0.114 in	Tin	0.2 in	5.08 mm	Through Hole	12 A	Polyamide (PA) Nylon
Phoenix Contact 1911910	8	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0			630 V	8			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	16 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm	16 A
Phoenix Contact 1894613	2	Yellow	1	Screw - Rising Cage Clamp	Plug Female Sockets				250 V	2						Tin	0.2 in	5.08 mm	Free Hanging (In-Line)	12 A		0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm		0.2 mm˛	2.5 mm˛
Phoenix Contact 1779534	14	Green	1	Screw - Pressure Clip	Plug Female Sockets	UL94 V-0			630 V	14			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	12 A	Polyamide (PA) Nylon			0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M2.5	10 mm		0.2 mm˛	2.5 mm˛
Phoenix Contact 1760158	20	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets				250 V	20		Positions Stamped Retention Latches (Non-Wire Side)				Tin	0.2 in	5.08 mm	Free Hanging (In-Line)	12 A		0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm
Phoenix Contact 1779631		Green	1	Screw - Pressure Clip	Plug Female Sockets	UL94 V-0			630 V	24			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	12 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M2.5	10 mm
Phoenix Contact 1764235	8	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0			630 V	8		Retention Latches (Non-Wire Side) Strain Relief	300 V			Tin	0.2 in	5.08 mm	Free Hanging (In-Line)	12 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²			0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm	10 A
Phoenix Contact 1749315	15	Black	1	Screw - Rising Cage Clamp	Plug Female Sockets				250 V	15						Gold	0.197 in	5 mm	Free Hanging (In-Line)	12 A				0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm		0.2 mm˛	2.5 mm˛
Phoenix Contact 1911907	7	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0			630 V	7			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	16 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm	16 A
Phoenix Contact 1924101	4	Green	1	Solder	Header Male Pins Shrouded (4 Side)	UL94 V-0			400 V	4	90° Right Angle	Mating and Mounting Flange	300 V	3.5 mm	0.138 in	Tin	0.2 in	5.08 mm	Through Hole	16 A	Polyamide (PA) Nylon			0.339 "	8.61 mm									16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.42
		10	$ 3.33
		50	$ 3.11
		100	$ 2.86
		250	$ 2.64
		500	$ 2.53
		2500	$ 2.53
Newark	Each	1	$ 3.60
		25	$ 3.32
		50	$ 3.02
		100	$ 2.82
		250	$ 2.64
		500	$ 2.35
Sager	N/A	50	$ 3.55
		100	$ 3.42
		250	$ 3.29
		500	$ 3.18

Description

General part information

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw
