1760158

Active

Phoenix Contact

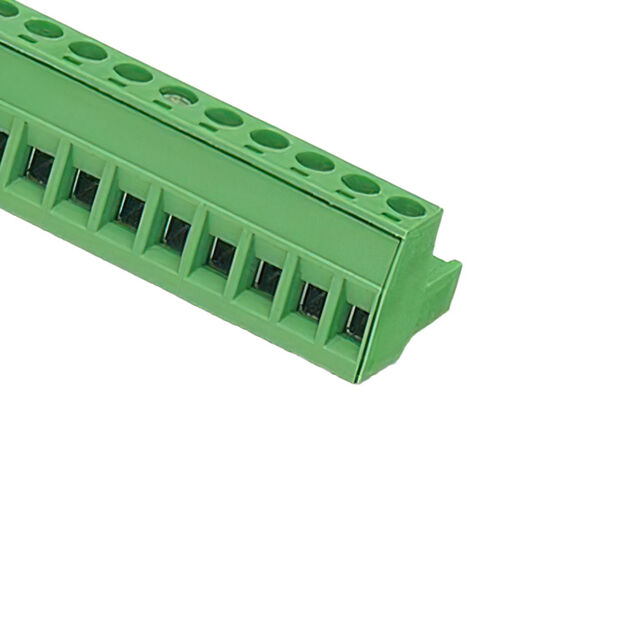

PLUGGABLE TERMINAL BLOCKS 20 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1760158

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 20 POS 5.08MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1760158

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Features	Positions Stamped, Retention Latches (Non-Wire Side)
Insulation Height	0.591 in
Insulation Height	15 mm
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	20
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	20
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	250 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	7 mm

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Positions Per Level	Color	Number of Levels	Termination Style	Type	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Voltage - IEC	Number of Positions	Header Orientation	Features	Voltage - UL	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Pitch [x]	Pitch [x]	Mounting Type	Current - IEC	Housing Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Screw Size	Wire Strip Length	Current - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1927564	2	Black	1	Solder	Header Male Pins Shrouded (4 Side)	UL94 V-0	0.35 in	8.89 mm	400 V	2	90° Right Angle	Mating and Mounting Flange	300 V	2.9 mm	0.114 in	Tin	0.2 in	5.08 mm	Through Hole	12 A	Polyamide (PA) Nylon
Phoenix Contact 1911910	8	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0			630 V	8			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	16 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm	16 A
Phoenix Contact 1894613	2	Yellow	1	Screw - Rising Cage Clamp	Plug Female Sockets				250 V	2						Tin	0.2 in	5.08 mm	Free Hanging (In-Line)	12 A		0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm		0.2 mm˛	2.5 mm˛
Phoenix Contact 1779534	14	Green	1	Screw - Pressure Clip	Plug Female Sockets	UL94 V-0			630 V	14			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	12 A	Polyamide (PA) Nylon			0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M2.5	10 mm		0.2 mm˛	2.5 mm˛
Phoenix Contact 1760158	20	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets				250 V	20		Positions Stamped Retention Latches (Non-Wire Side)				Tin	0.2 in	5.08 mm	Free Hanging (In-Line)	12 A		0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm
Phoenix Contact 1779631		Green	1	Screw - Pressure Clip	Plug Female Sockets	UL94 V-0			630 V	24			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	12 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M2.5	10 mm
Phoenix Contact 1764235	8	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0			630 V	8		Retention Latches (Non-Wire Side) Strain Relief	300 V			Tin	0.2 in	5.08 mm	Free Hanging (In-Line)	12 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²			0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm	10 A
Phoenix Contact 1749315	15	Black	1	Screw - Rising Cage Clamp	Plug Female Sockets				250 V	15						Gold	0.197 in	5 mm	Free Hanging (In-Line)	12 A				0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm		0.2 mm˛	2.5 mm˛
Phoenix Contact 1911907	7	Green	1	Screw - Rising Cage Clamp	Plug Female Sockets	UL94 V-0			630 V	7			300 V			Tin	0.197 in	5 mm	Free Hanging (In-Line)	16 A	Polyamide (PA) Nylon	0.2 mm²	2.5 mm²	0.591 in	15 mm	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	M3	7 mm	16 A
Phoenix Contact 1924101	4	Green	1	Solder	Header Male Pins Shrouded (4 Side)	UL94 V-0			400 V	4	90° Right Angle	Mating and Mounting Flange	300 V	3.5 mm	0.138 in	Tin	0.2 in	5.08 mm	Through Hole	16 A	Polyamide (PA) Nylon			0.339 "	8.61 mm									16 A
