PPTC191LGBN
ObsoleteSullins Connector Solutions

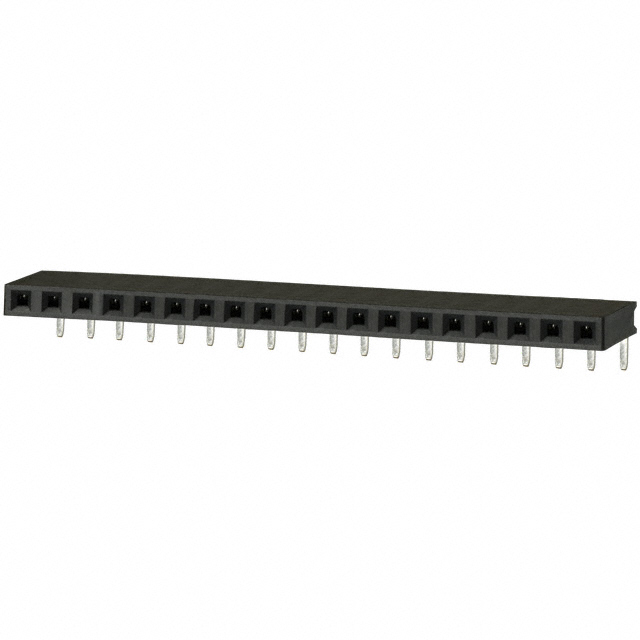

CONN HDR 19POS 0.1 TIN PCB R/A
Deep-Dive with AI
Search across all available documentation for this part.
PPTC191LGBN
ObsoleteSullins Connector Solutions
CONN HDR 19POS 0.1 TIN PCB R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PPTC191LGBN |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.15 mm |
| Contact Length - Post | 0.124 " |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 19 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 250 VDC |
PPTC191 Series
| Part | Insulation Material | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Type | Voltage Rating | Number of Positions Loaded | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Rows | Termination | Material Flammability Rating | Connector Type | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Post | Number of Positions | Contact Material | Contact Shape | Contact Length - Post | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Polyester | Black | -40 °C | 105 ░C | 3 A | Female Socket | 250 VDC | All | Push-Pull | 0.1 in | 2.54 mm | 1 | Solder | UL94 V-0 | Header | Through Hole | 0.335 " | 8.51 mm | Tin | 19 | Phosphor Bronze | Square | 3.2 mm | 0.126 in | |
Sullins Connector Solutions | Polyester | Black | -40 °C | 105 ░C | 3 A | Female Socket | 250 VDC | All | Push-Pull | 0.1 in | 2.54 mm | 1 | Solder | UL94 V-0 | Header | Through Hole Right Angle | 0.1 in | 2.54 mm | Tin | 19 | Phosphor Bronze | Square | 3.15 mm | 0.124 " | |
Sullins Connector Solutions | Polyester | Black | -40 °C | 105 ░C | 3 A | Female Socket | 250 VDC | All | Push-Pull | 0.1 in | 2.54 mm | 1 | Solder | UL94 V-0 | Header | Through Hole | 0.335 " | 8.51 mm | Tin | 19 | Phosphor Bronze | Square | 3.2 mm | 0.126 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PPTC191 Series
19 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
