PPTC191LFBN

Obsolete

Sullins Connector Solutions

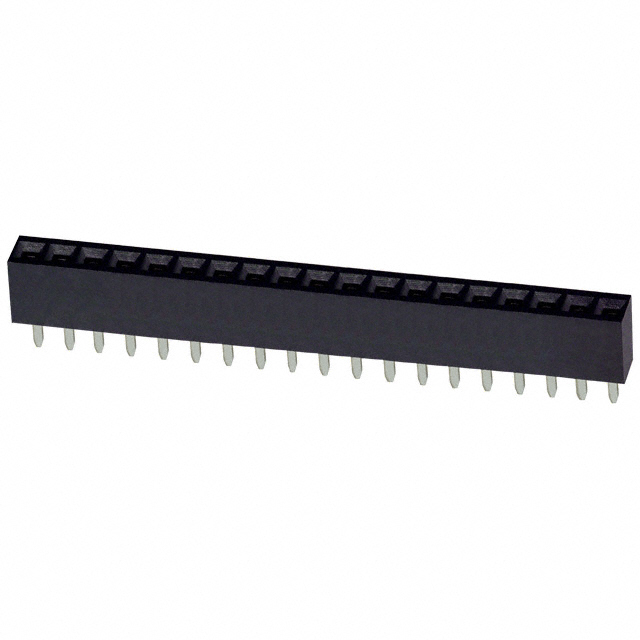

CONN HDR 19POS 0.1 TIN PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 19POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC191LFBN

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Voltage Rating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Rows	Termination	Material Flammability Rating	Connector Type	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions	Contact Material	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post
Sullins Connector Solutions PPTC191LFBN	Polyester	Black	-40 °C	105 ░C	3 A	Female Socket	250 VDC	All	Push-Pull	0.1 in	2.54 mm	1	Solder	UL94 V-0	Header	Through Hole	0.335 "	8.51 mm	Tin	19	Phosphor Bronze	Square	3.2 mm	0.126 in
Sullins Connector Solutions PPTC191LGBN	Polyester	Black	-40 °C	105 ░C	3 A	Female Socket	250 VDC	All	Push-Pull	0.1 in	2.54 mm	1	Solder	UL94 V-0	Header	Through Hole Right Angle	0.1 in	2.54 mm	Tin	19	Phosphor Bronze	Square	3.15 mm		0.124 "
Sullins Connector Solutions PPTC191LFBN-RC	Polyester	Black	-40 °C	105 ░C	3 A	Female Socket	250 VDC	All	Push-Pull	0.1 in	2.54 mm	1	Solder	UL94 V-0	Header	Through Hole	0.335 "	8.51 mm	Tin	19	Phosphor Bronze	Square	3.2 mm	0.126 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Header Connector 0.100" (2.54mm) Through Hole Tin
