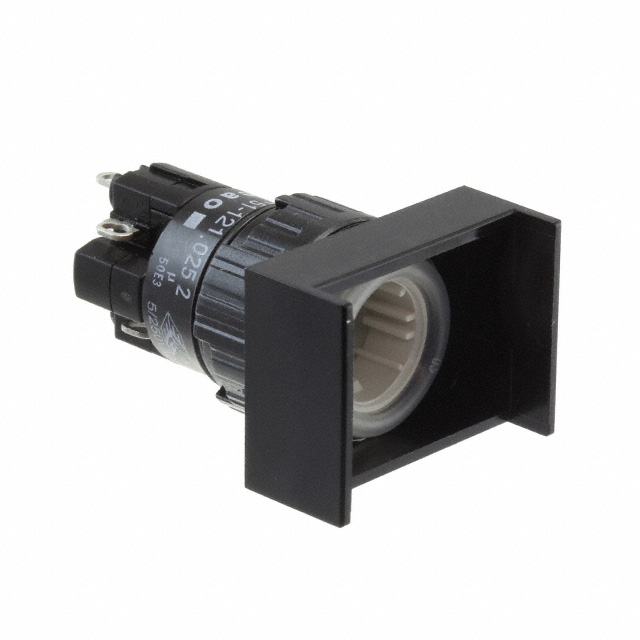

51-121.025

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-121.025

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

Part	Circuit	Current Rating (Amps)	Actuator Marking	Termination Style	Mechanical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Switch Function	Ingress Protection	Type	Panel Cutout Dimensions [diameter]
EAO 51-121.025	DPST-NO/NC	5 A	No Marking	Solder Lug	2000000 Cycles	250 V	55 °C	-25 °C	Panel Mount Front	Rectangular Button (Not Included)	Off-Mom On-Mom	IP65 - Dust Tight Water Resistant	Standard	16 mm
EAO 51-121.012	DPST-NO/NC	5 A	No Marking		2000000 Cycles	250 V	55 °C	-25 °C	Panel Mount Front	Rectangular Button (Not Included)	Off-Mom On-Mom	IP65 - Dust Tight Water Resistant	Standard	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
