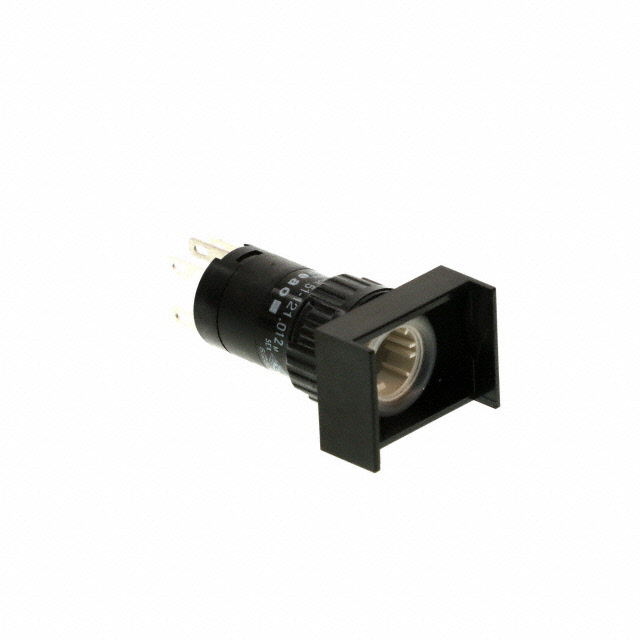

51-121.012
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-121.012 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom, On-Mom |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.53 | |
| 10 | $ 28.06 | |||
| 25 | $ 26.45 | |||
| 50 | $ 25.30 | |||
| 100 | $ 24.19 | |||
| 250 | $ 22.80 | |||
Description
General part information
51-121 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
