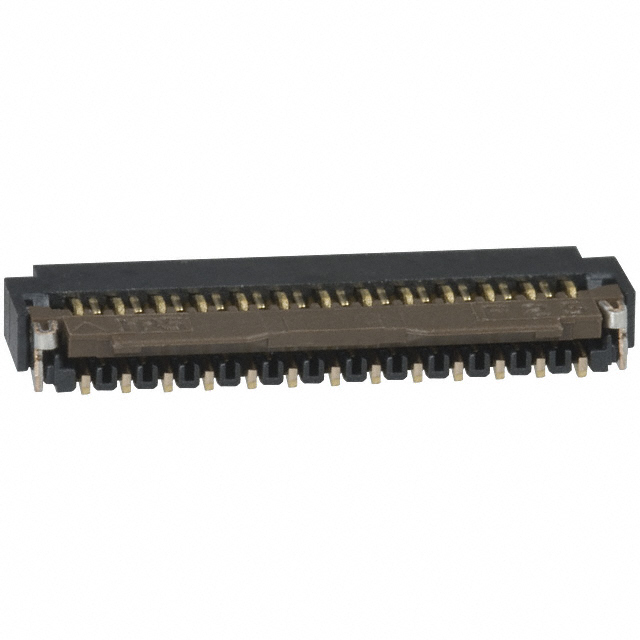

FH26W-25S-0.3SHW(60)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 25POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH26 Series Catalog

FH26W-25S-0.3SHW(60)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 25POS 0.3MM R/A

Deep-Dive with AI

DocumentsDatasheet FH26 Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH26W-25S-0.3SHW(60)

Actuator Color	Brown
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.2 A
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 HB
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

FH26 Series

Part	Current Rating (Amps)	Locking Feature	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Connector/Contact Type	Termination	Cable End Type	Actuator Color	Number of Positions	Housing Material	Mounting Type	Actuator Material	Flat Flex Type	Voltage Rating	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Contact Finish	Housing Color	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FH26W-31S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	31	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-41S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	41	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-13S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	13	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-51S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	51	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-21S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	21	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-45S-0.3SHW(15)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	45	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-61S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	61	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-71S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	71	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-15S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	15	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-25S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown		Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.27
		10	$ 1.10
		25	$ 1.05
		50	$ 1.03
		100	$ 0.98
		250	$ 0.89
		500	$ 0.82
	Digi-Reel®	1	$ 1.27
		10	$ 1.10
		25	$ 1.05
		50	$ 1.03
		100	$ 0.98
		250	$ 0.89
		500	$ 0.82
	Tape & Reel (TR)	5000	$ 0.82

Description

General part information

FH26 Series

25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
