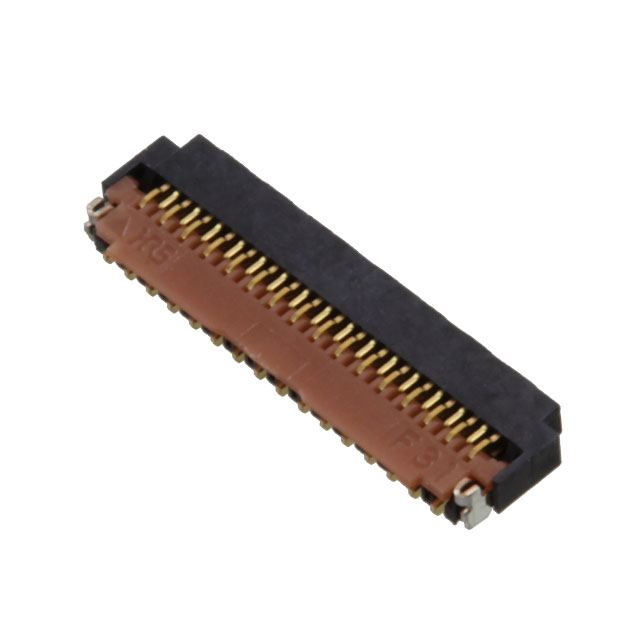

FH26W-31S-0.3SHW(60)
ActiveHirose Electric USA, Inc.
0.3MM PITCH, HEIGHT 1.0MM BOTTOM CONTACT, FRONT FLIP
Deep-Dive with AI
Search across all available documentation for this part.
FH26W-31S-0.3SHW(60)
ActiveHirose Electric USA, Inc.
0.3MM PITCH, HEIGHT 1.0MM BOTTOM CONTACT, FRONT FLIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FH26W-31S-0.3SHW(60) |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Nylon, Polyamide (PA) |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.2 A |
| FFC, FCB Thickness | 0.2 mm |
| Flat Flex Type | FPC |
| Height Above Board [z] | 1 mm |
| Height Above Board [z] | 0.039 in |
| Housing Color | Black |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 HB |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 31 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
| Termination | Solder |
| Voltage Rating | 30 VDC |
FH26 Series
| Part | Current Rating (Amps) | Locking Feature | FFC, FCB Thickness | Pitch [x] | Pitch [x] | Connector/Contact Type | Termination | Cable End Type | Actuator Color | Number of Positions | Housing Material | Mounting Type | Actuator Material | Flat Flex Type | Voltage Rating | Contact Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Contact Finish | Housing Color | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 31 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | ||
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 41 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | ||
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 13 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | ||
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 51 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB UL94 V-0 | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | 1.25 Áin | 0.03 Ám |
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 21 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | ||
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 45 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | ||
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 61 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB UL94 V-0 | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | 1.25 Áin | 0.03 Ám |
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 71 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB UL94 V-0 | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | 1.25 Áin | 0.03 Ám |
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | 15 | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB UL94 V-0 | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 | 1.25 Áin | 0.03 Ám |
Hirose Electric USA, Inc. | 0.2 A | Flip Lock | 0.2 mm | 0.012 in | 0.3 mm | Contacts Bottom | Solder | Tapered | Brown | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Nylon Polyamide (PA) | FPC | 30 VDC | Phosphor Bronze | UL94 HB | 85 °C | -55 °C | 1 mm | 0.039 in | Gold | Black | 10 |
